Kodak Easyshare Z981 Bottom Panel Replacement

Geschrieben von: Olivia Boyna
  • Kommentare: 10
Kodak Easyshare Z981 Bottom Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide will explain how you can replace the battery cover on your Kodak Easyshare Z981.

  1. WWR1DEqicbCKFEXF
    WWR1DEqicbCKFEXF
    Me54MSkAmBt2Vjym

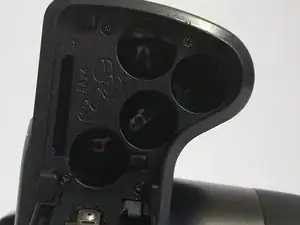

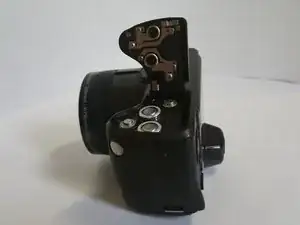

    • Open the battery cover and remove the AA batteries from the camera if any are inserted.

    July 10, 2022.. If your door to your Kodak Z 981 will not stay shut, attach your Vertical Picture Grip to the bottom of the camera. That will keep the battery cover shut. It is a pad that attaches to the bottom of the camera so you can turn the camera side ways to take vertical shots . Buy a used one if you do not have one.

    Glenn Cochran -

  2. K4fNMFIk42w5JI3W
    K4fNMFIk42w5JI3W
    edWpgQM2MvVFFHRY
    RTibVHDZIZOqprcp

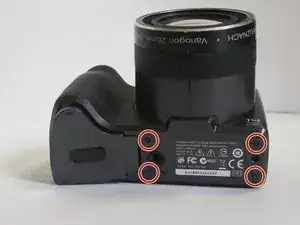

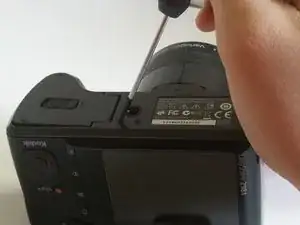

    • Use a 00 Phillips-Head screwdriver

    • Remove the 3 mm screws from the camera.

    • Four (4) screws are in the bottom of the device

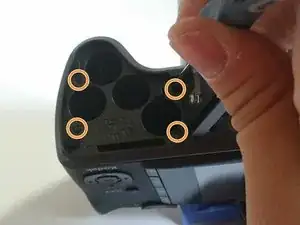

    • Four (4) screws are inside the battery cover

    It isn’t the back cover which is defalse but the 3 plastic pin which the battery cover open and close. Does this part must be change.

     This is my koday mode KKL-Z981(B)

    Jean-Louis Lavoie -

    It is’nt the back cover which is defalque but the 3 plastic pins on which the cover  open or close to charge or remove the battery.Thank’s

    Does  this piece be replace ?

    Jean-Louis Lavoie -

    Where can I buy the bottom panel

    Pat Cottingham -

  3. rTaaiDYNRDHERCyM

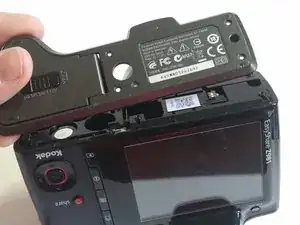

    • Start from a corner and gently remove the bottom cover.

    • The cover will easily lift off, so not much pressure is required.

    • Be gentle while removing the cover, to avoid breaking the plastic

  4. Qx5SU1NFmgR2D2EJ
    Qx5SU1NFmgR2D2EJ
    bBxjDdP1kEwpCRWV
    6QZD2IC2RWmCSf1g

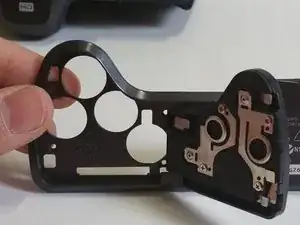

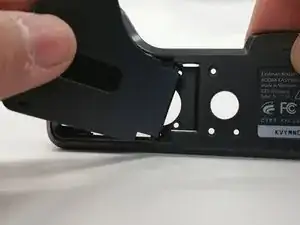

    • Remove the bottom of the battery cover first, and then the top.

    • The hinge is simple, the screwdriver is no longer necessary.

    Where can I buy the bottom panel?

    Pat Cottingham -

Abschluss

To reassemble your device, follow these instructions in reverse order.
