Kodak PixPro AZ251 Motherboard Replacement

Geschrieben von: Deborah Oliveira
  • Kommentare: 2
Kodak PixPro AZ251 Motherboard Replacement

Schwierigkeitsgrad

Very difficult

Schritte

19

Zeitaufwand

1 Stunde

Einleitung

In this guide, you will learn how to remove and replace the motherboard of your Kodak PixPro AZ251. Replacing the motherboard may be necessary if your camera does not turn on and you already tried replacing the batteries. For this replacement guide you should be comfortable using a soldering iron.

  1. W1kmoSo2CFRauKtg
    W1kmoSo2CFRauKtg
    HSvixSUSNWUock6e

    • Slide switch to open lock position.

  2. MWlabhKwFUPtDoEA
    MWlabhKwFUPtDoEA
    rTWSxQPCXfXgwwff

    • Press down on the battery cover and slide outwards to open.

  3. oVkvnSZvtkesDqdt

    • Remove the batteries.

  4. GlcE4UsnZyRuXdU3
    GlcE4UsnZyRuXdU3
    GUQ53eVAviPEdtNj
    Ho6TUfiMovbuCtvB

    • Remove a total of four 5mm JIS #000 screws from around the camera:

    • Two screws from the right side.

    • Two screws from the left side.

  5. HJUVNCaNevmXROPY

    • Remove the single 5mm Phillips #00 screw from the bottom.

  6. 52kBqpvLjhsdwGUw
    52kBqpvLjhsdwGUw
    V5EAt3iVMF4ATGFJ

    • Open the flash module.

    • Remove the two 6mm JIS #00 screws found inside of the flash housing.

  7. HJjJfq3gYsSLa4ZL
    HJjJfq3gYsSLa4ZL
    MGK5fc6rkGkFR1GK
    GYqvRJMnX1OHalFF

    • Use a plastic opening tool to pry apart both halves of the camera.

    • Remove the back panel.

  8. xfZYyemH44ZbsOXm
    xfZYyemH44ZbsOXm
    i4Us4wbBjD4FhErR

    • Remove these three JIS #000 screws from the control board:

    • 5mm screw.

    • 4mm screw.

    • 2mm screw.

  9. RYXP2P4Li3BMIEaj

    • Pull the small metal switch plate to the side.

  10. a2uWfVqkZZC3iwm4
    a2uWfVqkZZC3iwm4
    DEpKf1mkXSH3uXK3

    • Pry the LCD screen out of the metal housing plate with a plastic opening tool.

  11. hSrSqIV3vrfciYG5
    hSrSqIV3vrfciYG5
    cTPu1sE5fRpAxvqR

    • Use a spudger to flip up the retaining flap on the display ribbon cable ZIF socket.

    • Pull the orange cable out of the socket.

    Where do you buy a new screen from

    lewis taylor -

    Where can I buy the screen from as I can’t find the screen for the camera or can I buy a different lcd screen

    lewis taylor -

  12. AiKY2dcxxxQS2NE2
    AiKY2dcxxxQS2NE2
    dh51mLtWRtElFI1P

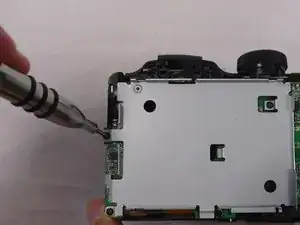

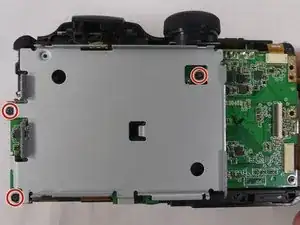

    • Remove three 4mm JIS #000 screws from the metal housing plate.

  13. HNZvKwTUUV5qLpx3

    • Lift the metal housing plate out using your hands.

  14. yHWHhXlLYpZQsj3R

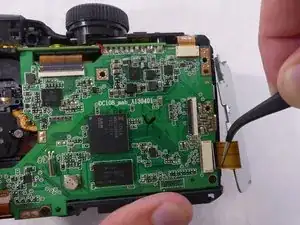

    • Disconnect the orange cable, connecting the small metal switch plate to the motherboard, by pulling it outwards with tweezers.

  15. md6Ei2fwJSuZ5lbd
    md6Ei2fwJSuZ5lbd
    NXwrNHVvZqhOAQyV

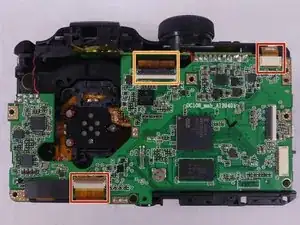

    • Disconnect two orange cables, one at the top and the other at the bottom of the motherboard, by pulling them outwards with tweezers.

    • Use a spudger to flip up the retaining flap on the ribbon cable ZIF socket.

  16. MNJgLVEYXeQUObAf
    MNJgLVEYXeQUObAf
    5wsUuesJ1BBGIDJw

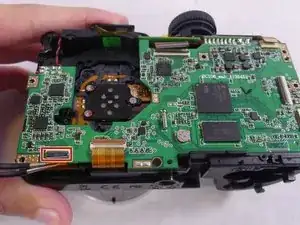

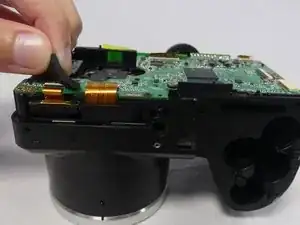

    • Remove the rectangular black cushion pad on the bottom left of the motherboard by pulling it upwards with your hands.

    • Use a spudger to flip up the retaining flap on the ribbon cable ZIF socket.

    • Disconnect the orange cable by pulling it outwards with tweezers.

  17. 3Cc6N3InNrZAnhj4

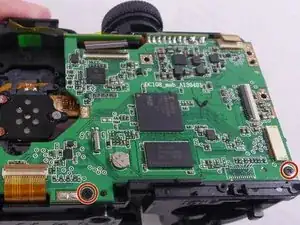

    • Remove the two 4mm JIS #000 screws from the motherboard.

  18. keHCFlm5VOVaxrnj

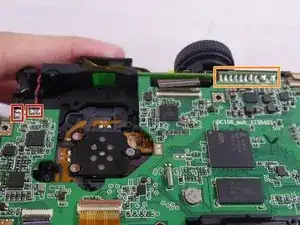

    • Desolder two pairs of electrical cable connections on the top left of the motherboard using the soldering iron.

    • Desolder the metal connector joining the two parts of the motherboard using the soldering iron.

    • The unsoldering steps are not shown.

  19. FZZKS6cg5rKDwpKe

    • Lift the motherboard up using your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
