Kodak PixPro AZ251 Rubber Grip Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

2 Minuten

Einleitung

The rubber grip, located on the front of your Kodak PixPro AZ251, gives you a better grip of the camera. This guide will instruct you on how to remove the rubber pad.

  1. W1kmoSo2CFRauKtg
    W1kmoSo2CFRauKtg
    HSvixSUSNWUock6e

    • Slide switch to open lock position.

  2. MWlabhKwFUPtDoEA
    MWlabhKwFUPtDoEA
    rTWSxQPCXfXgwwff

    • Press down on the battery cover and slide outwards to open.

  3. oVkvnSZvtkesDqdt

    • Remove the batteries.

  4. UYJv5lTueCmBMFHB

    • Insert the plastic opening tool underneath the rubber on the bottom corner.

  5. OPAM3LbPmfIJPwnr
    OPAM3LbPmfIJPwnr
    BuCZDb4PEKN3ZOQs
    Zapu1ga6cI6hBRZm

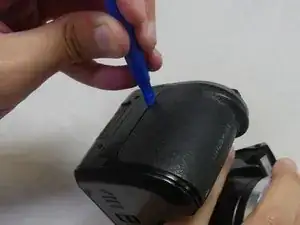

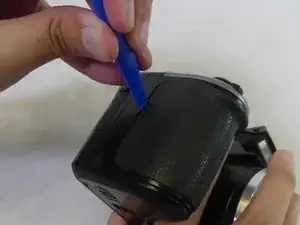

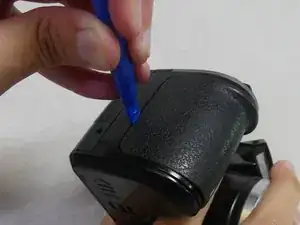

    • Slide the plastic opening tool along the perimeter of the rubber grip to unbind the glue.

  6. PswPZVwNjTHGEAyK
    PswPZVwNjTHGEAyK
    4h2s1Q6ED6bMPyLJ
    T3kLAUQs3L5CNinn

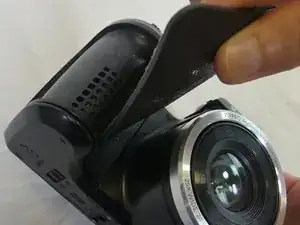

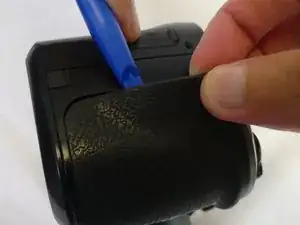

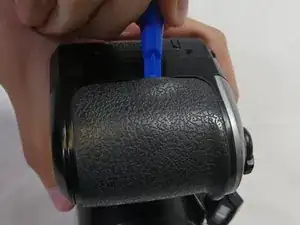

    • Pry upwards until you can grip the rubber enough to pull off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
