Kodak Signet 35 Shutter Spring Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

7 Minuten

Einleitung

If the shutter on your Kodak Signet 35 isn't working properly, then the shutter spring may need to be cleaned or replaced. This guide will show you how. Please make sure you have all the necessary tools, as well as a clean and stable surface on which to work, before you start these steps.

Werkzeuge

  1. HpIOmJnjFyoTpgY5
    HpIOmJnjFyoTpgY5
    lBjxhh2mGQwcaCV2
    Hv6kkdwy1dpvbliw

    • While the camera is lying on its back, unscrew the front lens assembly and remove the lens and the faceplate. Then lift off the speed setting.

  2. SJJBhdQGHDCXMIBR
    SJJBhdQGHDCXMIBR
    bE6CndhSRG6KLOWy

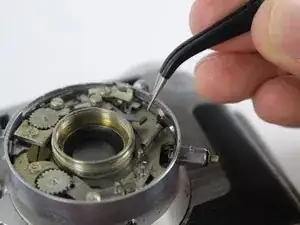

    • Remove the lever from the stopper by pushing it back and then upwards.

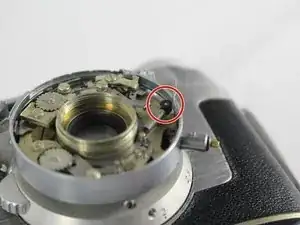

  3. qHPmstsP6AWIsV2m
    qHPmstsP6AWIsV2m
    J1niOyO1eYGqEDCn

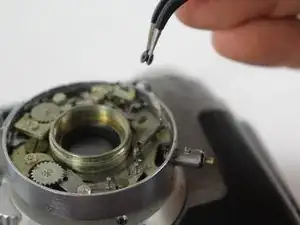

    • Remove the stopper by lifting it upwards with the tweezers.

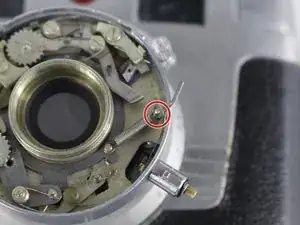

  4. 5qqggOCVK2ATkmbl
    5qqggOCVK2ATkmbl
    uu3FQiS3tBBdHWUh
    fZMtvW1dgFGVUJJy

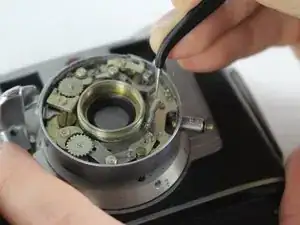

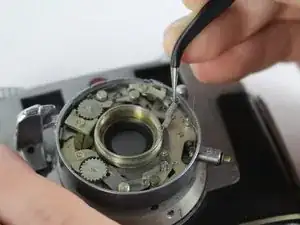

    • Using tweezers, unhitch the spring from the base and remove it by lifting upwards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
