Einleitung

The “Free-Stand” button enables the stroller to fold into a freestanding, compact position. Sometimes the button can get stuck and requires simple internal repair. This guide will walk you through that process.

  1. qYRjoXgSOMf2NZtc
    qYRjoXgSOMf2NZtc
    GymmcvDeyOtXTLJ4
    • Unscrew the two, 27mm Phillips #2 screws from the back of the “Free-Stand” button case.

    • You may want to flip the stroller over to access the screws.

  2. bdXAtHTKuJJCRA6e

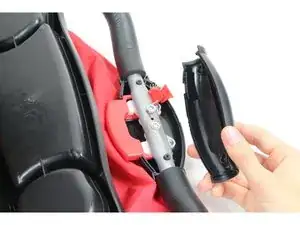

    • Remove the back cover of the case by lifting it straight up.

  3. UCeSVgKHH16KEdiQ

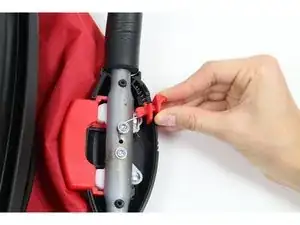

    • The spring may pop out while removing the "Free Stand" button, so lift the button slowly to avoid losing the spring.

    • To access the spring, remove the red, "Free-Stand" button by lifting it straight up.

  4. 4kmEewIFEIL4QaU4

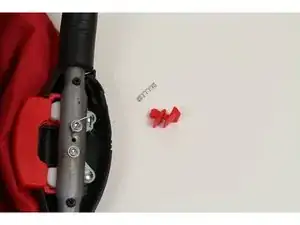

    • If the spring does not come out when you remove the "Free-Stand" button, lift the spring out of the case so it can be fixed or replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
