Kolcraft Cloud Plus Wheel Replacement

Geschrieben von: Christopher Peterson
  • Kommentare: 0
Kolcraft Cloud Plus Wheel Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

1 Minute

Einleitung

The wheels are vital to the stroller's function. Damaged or loose wheels can be frustrating, but wheel replacement is quick and painless.

  1. 3YtABeGoKKum6SYZ
    3YtABeGoKKum6SYZ
    vyhBtZNnlyOPnUr1

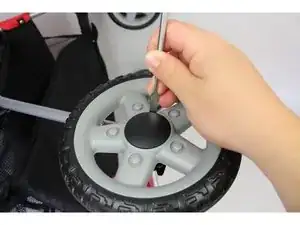

    • Applying too much force to the spudger can cause the spudger to bend or the hubcap to break. To avoid this, try prying the hubcap from a different angle or positioning your spudger at a different points around the hubcap.

    • Use the spaded side of the metal spudger to pry off the small black hubcap on the outside of the rear wheel.

  2. 1SbWwyjTyBUOoANb
    1SbWwyjTyBUOoANb
    YYeZOEdhsPVnUruX

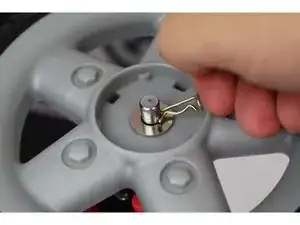

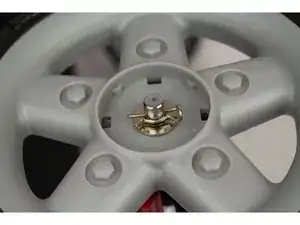

    • Pull on the looped end of the cotter pin to remove it.

  3. ZoGwZlhFKnKyeETM
    ZoGwZlhFKnKyeETM
    gxtJb32OsJ6o2JJP

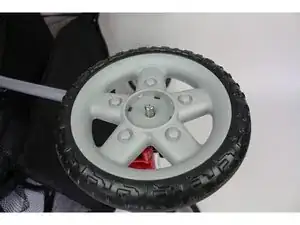

    • Remove the metal washer by sliding it off the axle.

  4. Tox5hKTXTrBU4qsj

    • Slide the wheel off of the axle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
