Koosh Vortex Tornado Trigger Replacement

Geschrieben von: Lingbin Meng
  • Kommentare: 0
Koosh Vortex Tornado Trigger Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 - 25 Minuten

Einleitung

This guide will show you how to replace the trigger of the Koosh Vortex Tornado.

  1. mgJZxcCkqfgrqpNW

    • Remove the fourteen 15 mm Phillips #1 screws on the side of the body.

  2. DHoXodmdouBnculA

    • Pull the halves of the toy gun apart to show the inside. Set the left half aside (all of the inside components are on the right half).

  3. aLRwi2V2uHCEHZsr

    • Using a spudger, unhook the barrel shield's spring from the right half of the toy gun. One side should still be connected to the shield barrel shield.

  4. wiJwApAJ4D2tOntA

    • Slide the barrel shield and shield slide off of the gun and set aside.

  5. Ay4L2SLcJLqHsda6

    • Slide the rubber ring off of the barrel and set it aside.

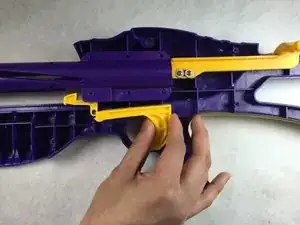

  6. o13n5BltfOIuvUyu

    • Lift the yellow trigger from its pin and set aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
