Korg Toneworks AX1500G Pedal Switch Replacement

Geschrieben von: Gabriel Maraboto
  • Kommentare: 3
Korg Toneworks AX1500G Pedal Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

1 Stunde

Einleitung

You will be able to take out the pedal switch in your Korg pedal board. With the right knowledge and parts you can fix your pedal's volume control.

  1. 2Ar6MRB3CfiVAMLf

    • Remove the black 8.0mm Phillips screws from the back of the Pedal Board.

    • Be careful when working with small electronics, as many of the components are fragile.

  2. 4LZVLnKvMGYia32G
    4LZVLnKvMGYia32G
    3JFSYgZZsoa1kwYx
    Lh4eXs4UZKcLLfBc

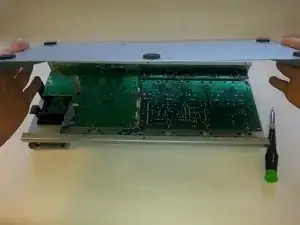

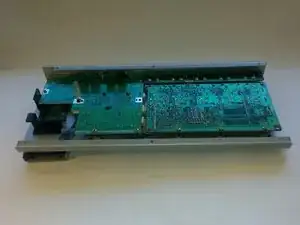

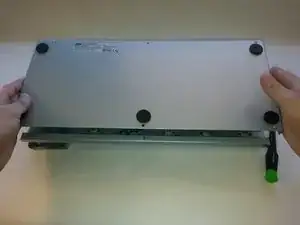

    • Remove the back panel of the board.

  3. MVbPLWBdmQxnSCY1

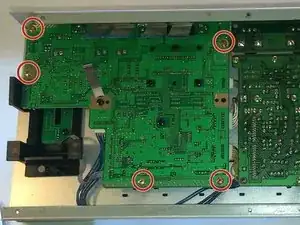

    • Unscrew the five golden 8.0mm Phillips screws holding down the left circuit board.

    • Be careful not to hit to metal parts on the circuit board, this could cause sparks and failure.

  4. NxELE2nkoY4vQYgc
    NxELE2nkoY4vQYgc
    TPadYkUB5DsTShAx
    F1TLeytpTxMAWhWB

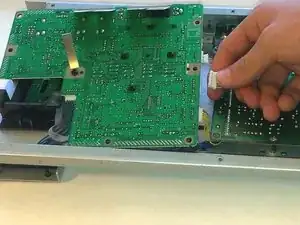

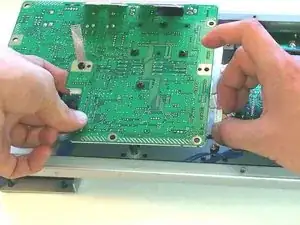

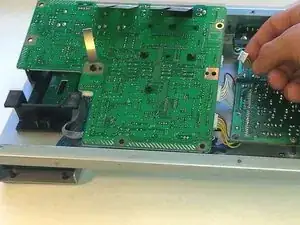

    • Carefully unplug three wires connecting the left circuit board to the right circuit board.

    • The wires may be stuck and difficult to remove. Try to pull from the plastic part.

  5. N5GLFOGImuYs3kWx
    N5GLFOGImuYs3kWx
    DvyOp5AFAOLqMllf
    lYql1YYLHHOWbKmC

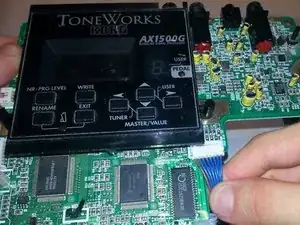

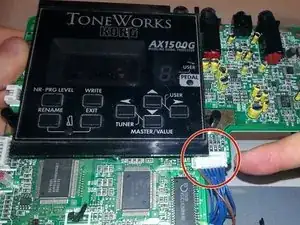

    • The circuit board is still connected at this point.

    • Carefully pull out the circuit board and turn it over.

    • Unplug the last cable connecting it to the other large circuit board.

  6. 2sOXfm6twRYyvEoP

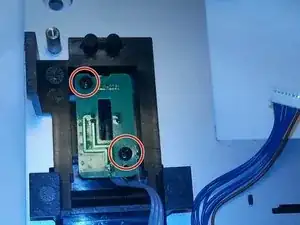

    • Unscrew the two 8.0 mm black Phillips screws from the small circuit board.

  7. Eil5COeVmfRYhJ3q
    Eil5COeVmfRYhJ3q
    l6NKDFh61UkMAZJX
    iHchZhXhNf4nRLWT

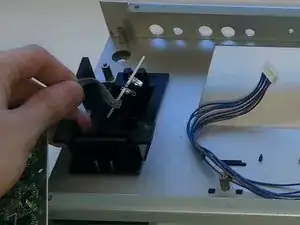

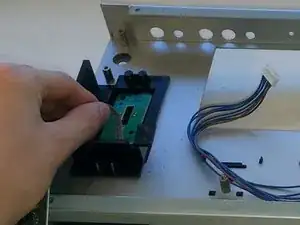

    • Gently pull out the small circuit board by the purple wire.

  8. OkeXZfU1FJpqDCSr
    OkeXZfU1FJpqDCSr
    26UwS5NQdQtxYM2C
    D3TXnRQpkqIX25QH

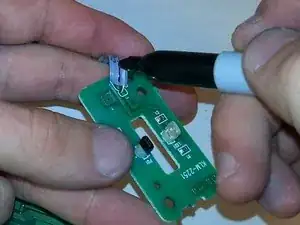

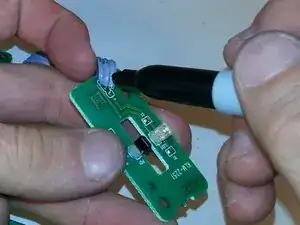

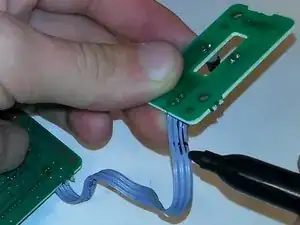

    • Mark the wire connected to the small circuit board so for future reference.

  9. lQhkvkp5F1ZcEICY
    lQhkvkp5F1ZcEICY
    nLptQl5ufxrOOvZD
    1RKHfogdjUayGGgX

    • Soldering Irons can be very dangerous if you are inexperienced.

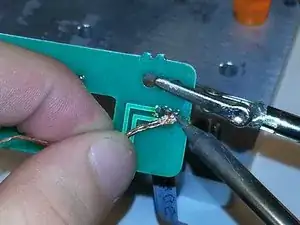

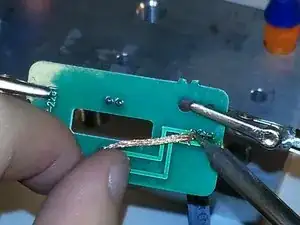

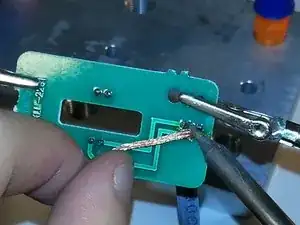

    • Desolder the wires connecting to the board and remove the board.

    • Solder the new foot switch circuit on

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Gabriel Maraboto

Mitglied seit: 29/09/15

200 Reputation

3 Kommentare

Thanks! My Ax1500g's pedal switch volume is failing, and not reaching the 100% volume, not even 50%. I've opened the pedalboard and removed the pedal switch, but I notice It doesn't have any true connection to the switchboard but an LED with a PhotoSensor that may be blocked by a plastic in the pedal itself, is that how it works? I was expecting a Potenciometer.

Where can I buy the pedal switch board replacement?

309001200 PHOTO TR RPM-22PB N OR P KLM-2251 AX150 1

312051900 PHOTO SENSOR SIM-22ST Q OR R KLM-2251 AX150 1
