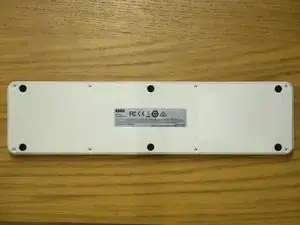

Remove the 8 screws on the bottom. Ensure that you have the right screwdriver bit, and that you go slowly and use enough force to turn the screw without stripping it.
-
(Serial numbers and personal info removed from picture)
-
-
-

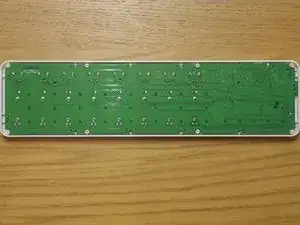

You can now remove the main circuit board, lifting out the left side first. (as the mini-USB port may hold the right side in.)
-

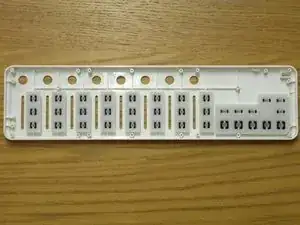

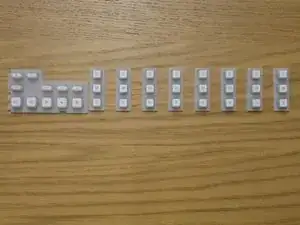

The rubber buttons can now easily come out.
-
-
-

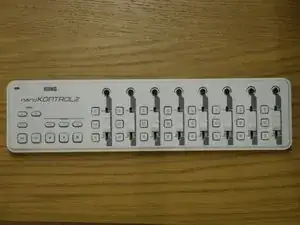

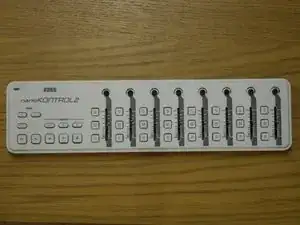

Features: (first picture)
-
8 faders
-
8 potentiometers
-
8 x Solo, Mute, Record buttons
-
5 + 4 transport buttons
-
2 track buttons
-
-
-

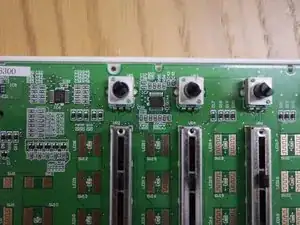

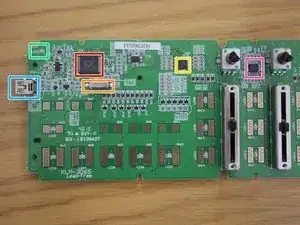

Chips
-
Labelled with: 2210CFP24V H8S/2210C TH30140 1325
-
ROSON Crystal oscillator, labelled with 24.000F20 HO
-
LW051A 58A04 P256 Texas Instruments Analog multiplexer
-
Mini-usb port
-
Power indicator LED
-
To reassemble your device, follow these instructions in reverse order.
