Kurio Touch 4S Front & Rear Facing Cameras Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show you how to replace your front & back camera of your Kurio Touch 4S

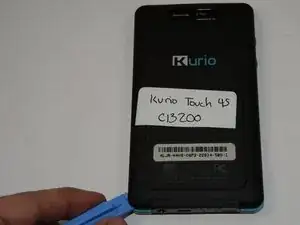

  1. CZO3oMxLPUduKHLZ

    • Make sure to open the back cover easily using the plastic opening tool.

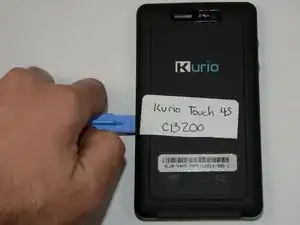

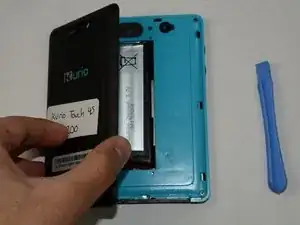

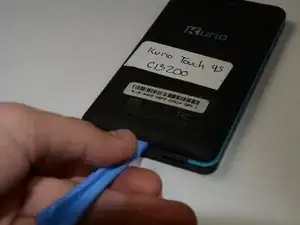

  2. JGAP2ymVMwbTCuSl
    JGAP2ymVMwbTCuSl
    C3VxgrUOQtJBS4B1
    1NVPWDQZevrBXIyc

    • Remove back cover by prying away from the Kurio.

    • The easiest place to remove the cover is from the bottom and top; try to open it from right to left sides.

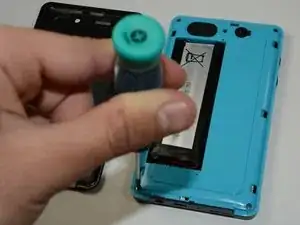

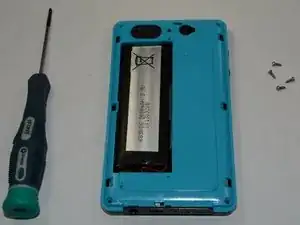

  3. dORj5CNx22sYfCJd
    dORj5CNx22sYfCJd
    o5SsaKLIKUqdETFC
    IQ6PTNQCJbOUII3T

    • To remove the battery, make sure the four 5mm Philips screws on each side of your device is open using the philips#1 Screwdriver.

  4. PphNPguE3PK2Rkyq

    • After you remove your four 5mm Philips screws, use your plastic opening tool to help you open the plastic cover of your device.

    • All these screws are identical so don't worry if you miss them up.

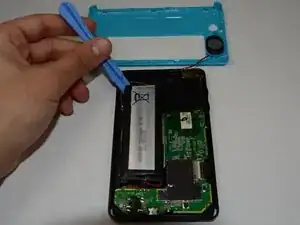

  5. DONjBgAUWZGmjSMk

    • Remove the battery because it blocks the plastic shield that covers the camera.

    • Do not remove the wires that are attached to the battery and the motherboard.

  6. WsULTqtOqk1tdxPX

    • Remove the plastic cover that is covering the camera area using tweezers.

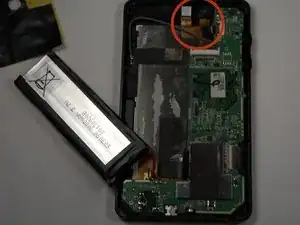

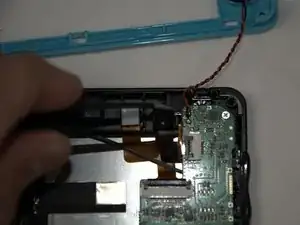

  7. 2BHCSqEiaouGSw62
    2BHCSqEiaouGSw62
    qcPaUefSaMIJaVxs

    • Separate the two halves of your Kurio Touch 4S.

    • Gently use a brush to remove any dirt or finger prints around the area.

    • Use the Tweezers to detach the front and back camera from its place.

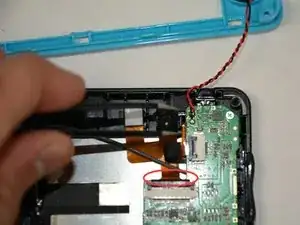

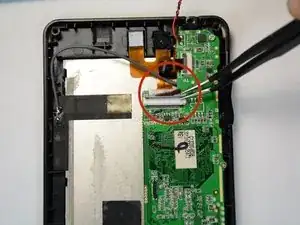

  8. j4dSjxdUxoSYIABB
    j4dSjxdUxoSYIABB
    AEBKMHFGkRkGADQV

    • Remove the copper wires by using the Tweezers to replace your new camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
