Kurio Xtreme Back Panel Replacement

Geschrieben von: Mallory Myers
  • Kommentare: 0
Kurio Xtreme Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

If the back panel on your Kurio Xtreme is broken, it may not sufficiently protect internal parts and wires. Follow this easy guide to remove the broken back panel so that you can replace it with a new one.

  1. uoQkCFRnIFyJNyPD

    • Remove the rubber case by beginning to peel from one of the top corners and continue peeling until the cover is completely removed.

  2. niYVCXO2jewL6Nf6
    niYVCXO2jewL6Nf6
    c1Btbq2bLDToS2Na

    • Unscrew the four 4 mm black screws using a Phillips #000 screw driver.

    • There are two screws on each side of the device (four total).

  3. b5CSUCmbJMBJMOOh
    b5CSUCmbJMBJMOOh
    jxxZsbnUyQthS1pZ
    jYyRWipttPbUYf1i

    • Insert the plastic opening tool in between the edges of the blue front casing and black back casing.

    • Slide the plastic opening tool around the perimeter of the device. This may require that you repeatedly run the opening tool up and down the edges of the device.

    • Be sure not to break any of the plastic clamps along the edges of the device when removing the back cover.

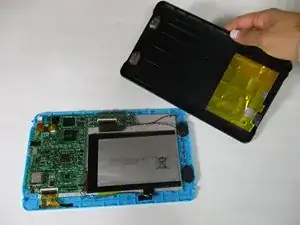

    • Carefully lift the back panel off of the rest of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
