Kushlan Cement Mixer 600DDS 2014 Gear Oil Replacement

Geschrieben von: Sam Omiotek

Kommentare: 0

Kushlan Cement Mixer 600DDS 2014 Gear Oil Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 - 45 Minuten

Einleitung

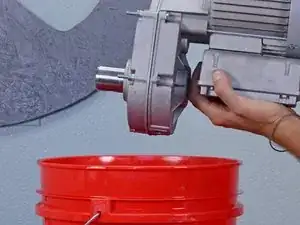

Follow this guide to replace the gear oil on a 2014 Kushlan cement mixer model 600DDS. Draining the gear oil is required before making any repairs that require accessing inside the gearbox.

This job requires two people to complete.

Change gearbox oil every 200 hours with 8 oz of 75W90 gear oil (see operator’s manual).

Properly dispose of used gear oil at a certified collection center.

Werkzeuge

Ersatzteile

Gear Oil

Schritt 1

Before you begin, ensure the power cord is unplugged and the power switch is in the OFF position.
Use a 13 mm socket to remove the two bolts securing the motor cover to the frame.

Schritt 2

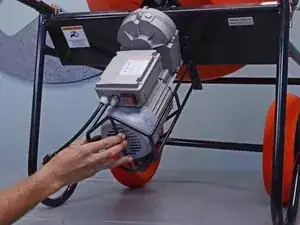

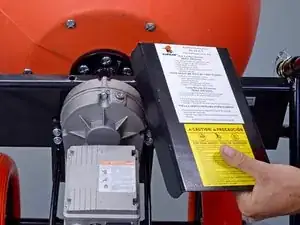

Remove the motor cover.

Schritt 3

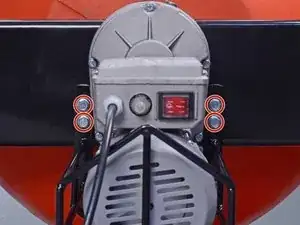

Use a 13 mm socket to remove the four bolts securing the motor cage to the frame.

Schritt 4

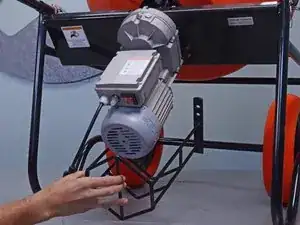

Remove the motor cage.

Schritt 5

Use a 19 mm socket to remove the 70 mm-long bolt securing the drum to the output shaft.

Schritt 6

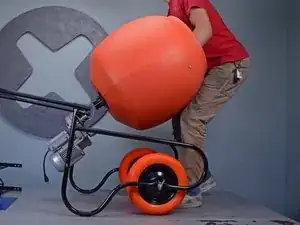

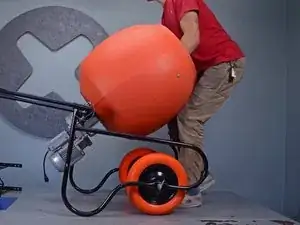

Lift the drum straight off of the output shaft and set it aside.
Two people may be required depending on the weight of the drum.

Schritt 7

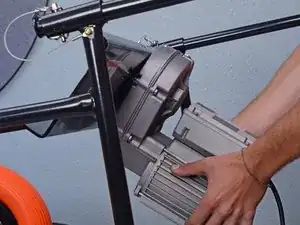

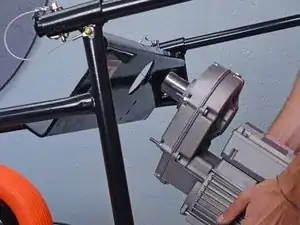

Have a second person hold the gearbox and motor assembly while you remove the nuts to prevent it from dropping.

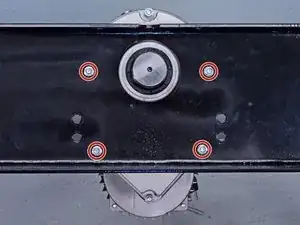

Use a 10 mm socket to remove the four nuts securing the gearbox to the frame.
