Kushlan Cement Mixer 600DDS 2014 On/Off Switch Replacement

Geschrieben von: Sam Omiotek
  • Kommentare: 0
Kushlan Cement Mixer 600DDS 2014 On/Off Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 30 Minuten

Einleitung

Follow this guide to remove or replace the on/off switch on a 2014 Kushlan cement mixer model 600DDS.

To prevent electric shock, leave the device unplugged for 20 minutes to allow the capacitor to discharge before you begin.

  1. G26ESODEQHehSQN5

    • Before you begin, ensure the power cord is unplugged and the power switch is in the OFF position.

    • Use a 13 mm socket to remove the two bolts securing the motor cover to the frame.

  2. trmcLQj3BQZYPWA2

    • Remove the motor cover.

  3. 1ESNsJKRiL6D4SxP

    • Use a Phillips screwdriver to remove the four screws securing the electrical panel.

  4. BbDERoKKdZhPThAN

    • Remove the electrical panel.

  5. QwWyYfcPZSfjfVcp
    QwWyYfcPZSfjfVcp
    BXVdogku5PeQDKkO
    Y2F5Z3pLuxSfXaGo

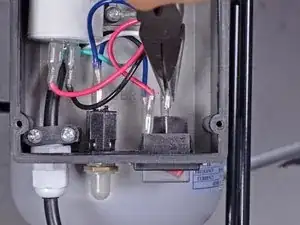

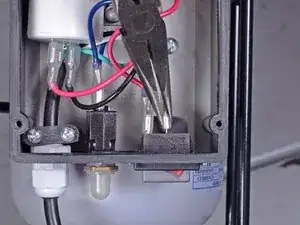

    • Use a pair of needle-nose pliers to disconnect the four wires from the back of the on/off switch.

    • During reassembly, ensure the wires are connected back into their original locations and the on/off switch is not upside-down.

  6. YYqSAAfcMArrUP3W
    YYqSAAfcMArrUP3W
    IodEPvNfn2IJCR4s
    HVSEXoWMNRUNl2Uo

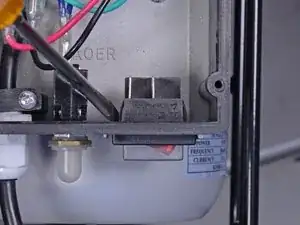

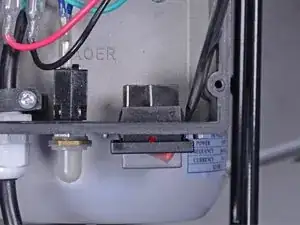

    • Use a flathead screwdriver to press the sides of the on/off switch through the opening in the electrical box.

  7. nZHCV5Kj1vGmDDJj

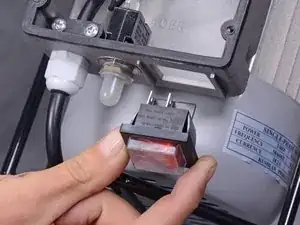

    • Remove the on/off switch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
