Kushlan Cement Mixer 600DDS 2014 Power Cord Replacement

Geschrieben von: Sam Omiotek
  • Kommentare: 0
Kushlan Cement Mixer 600DDS 2014 Power Cord Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 45 Minuten

Einleitung

Follow this guide to remove or replace the power cord on a 2014 Kushlan Cement Mixer model 600DDS.

To prevent electric shock, leave the device unplugged for 20 minutes to allow the capacitor to discharge before you begin.

  1. G26ESODEQHehSQN5

    • Before you begin, ensure the power cord is unplugged and the power switch is in the OFF position.

    • Use a 13 mm socket to remove the two bolts securing the motor cover to the frame.

  2. trmcLQj3BQZYPWA2

    • Remove the motor cover.

  3. 1ESNsJKRiL6D4SxP

    • Use a Phillips screwdriver to remove the four screws securing the electrical panel.

  4. BbDERoKKdZhPThAN

    • Remove the electrical panel.

  5. CiRGXeFoXRUaxsM2

    • Use a Phillips screwdriver to remove the two screws securing the fastener behind the strain relief fitting.

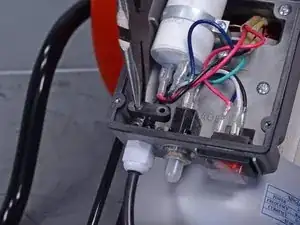

  6. 1sviyFTtnARGBnFq
    1sviyFTtnARGBnFq

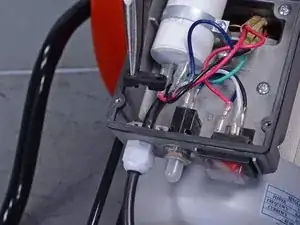

    TpbOueYvuFNcHN6h

    • Remove the fastener.

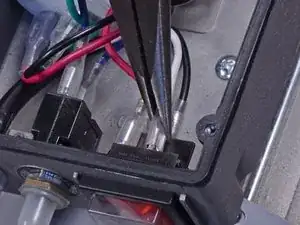

  7. xWtMlTOsMfsA1Scn
    xWtMlTOsMfsA1Scn
    XQUccjJ3niPuBIvW

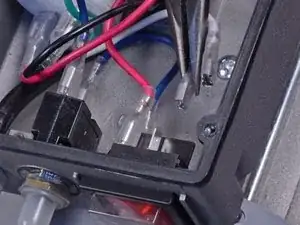

    GExlLkOxURSQlhRZ

    • Use a pair of needle-nose pliers to disconnect the two black and white wires from the on/off switch.

    • You don't need to remove the blue or red wires from the switch.

  8. wJaxmPDr1FrH6NqJ

    • Use a Phillips screwdriver to remove the screw securing the green ground wire to the bottom of the electrical box.

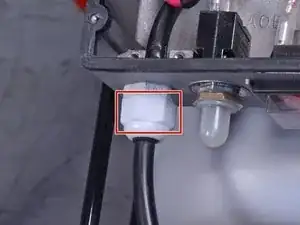

  9. pwySCAyvuUlBNOmc

    • Use an adjustable wrench to remove the power cord's strain relief fitting cap.

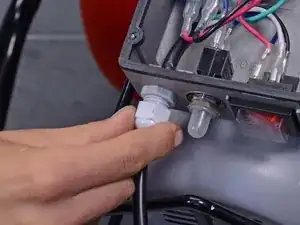

  10. GGIeXfafPFirlKpS
    GGIeXfafPFirlKpS

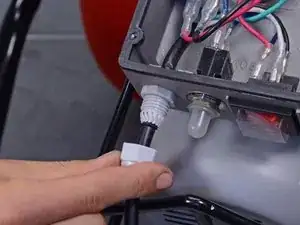

    FyIjX2N1Z3WFVZg1

    • Slide the cap off of the strain relief fitting.

  11. PV4TIVlZHYte5JoU
    PV4TIVlZHYte5JoU

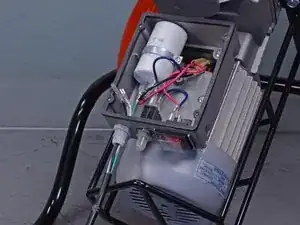

    GodWGOaDyH3FfqpG
    SXSQ2UlHTeUoQinR

    • Feed the power cord and its black, white, and green wires out through the strain relief fitting.

    • Transfer the strain relief fitting cap onto the new power cord before feeding it through the fitting.

Abschluss

To reassemble your device, follow these instructions in reverse order.
