Kyocera Event Rear Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

In order to reach the motherboard of the mobile phone, the back assembly needs to be removed.

  1. 1doj2DxPa2wtAVPE
    1doj2DxPa2wtAVPE
    FgRkTPCEX1SFiXrM
    5eLvAVVZumNFJZgg

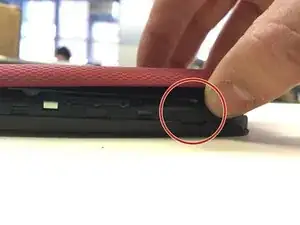

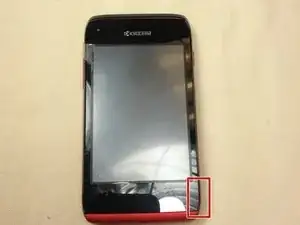

    • Locate the small notch on the bottom right side of the phone.

    • To remove the cover, hook your thumb or fingernail into the slot. Then, gently lift the cover up and off.

    • The back cover may flex slightly as you remove it. This is normal, but avoid applying excessive force.

  2. CDgHVEKdrvdEQ2tt

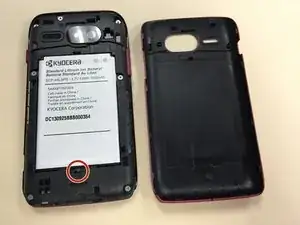

    • Locate the small notch below the battery. You may see a white plastic notch sticking out of this space; if so, grasp that tab to pull the battery out of its compartment. If you do not see a white plastic tab, then place your fingernail in the notch and pull upward to release the battery from its compartment.

    • The plastic prying tool can be used to help remove the battery.

  3. 4hCeRwJ3lHiMHSnT

    • The SIM card slot can be seen in the middle left of the photograph.

  4. QIJBSquKmjeITWZQ
    QIJBSquKmjeITWZQ
    LsUhitZwpY4LBqYP

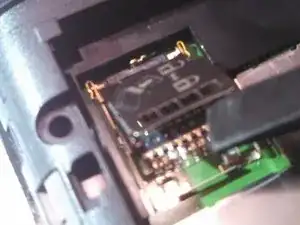

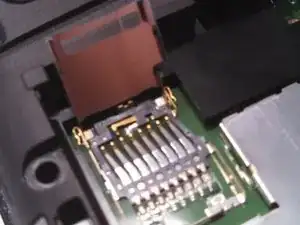

    • The SD card slot can be opened and closed, as depicted by the tool.

    • The SD card itself slides into and out of the metal cover.

    • The gold tipped tines are what read the SD card along its bottom.

  5. MeypiVlEvU33AWNJ
    MeypiVlEvU33AWNJ
    tH2YK6U4IFJCgfbn

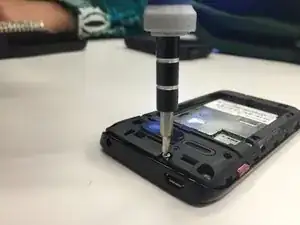

    • Remove seven of the 4.9mm tri-head screws. Keep them in a secure location.

  6. IC5AYaCITYWurr2r
    IC5AYaCITYWurr2r
    2LGdgGGog5BXytuG
    VAV2KnUbGnxsRxKX

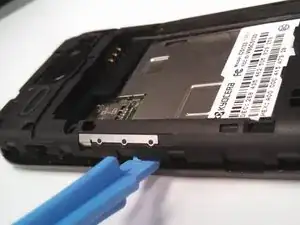

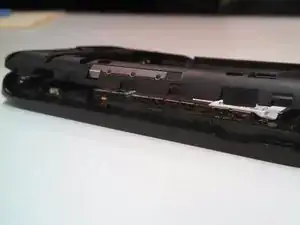

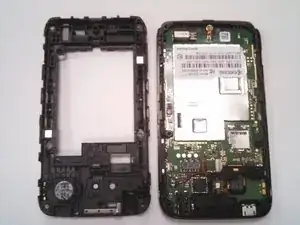

    • Pry the back assembly away from the body on all four sides of the phone.

    • Start prying at the top and work around.

    • Remove the buttons for the volume and power-this will allow for easier disassembly.

    • The back assembly is firmly attached to the body of the phone so removing it will require some force.

Abschluss

To reassemble your device, follow these instructions in reverse order.
