Kyocera Hydro Life Rear-Facing Camera Replacement

Geschrieben von: Morgan Marshall
  • Kommentare: 0
Kyocera Hydro Life Rear-Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

40 Minuten

Einleitung

A step-by-step rear camera replacement guide for the Kyocera Hydro Life smartphone.

  1. 1XvcB6JuXQqZZ5i2

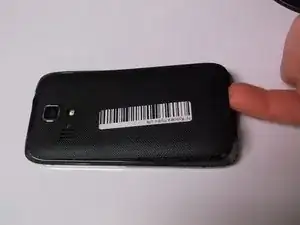

    • Flip the phone so that the screen is facing down.

    • Gently remove the back cover with the grip at the bottom of the phone.

  2. ouTxSCLeQSF61LW3
    ouTxSCLeQSF61LW3
    ZLk4TOGXFLLCsICi
    sKS4ccwV1KfXUgJD

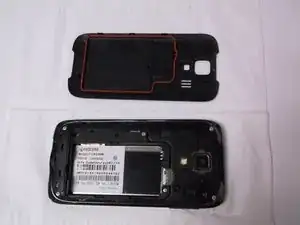

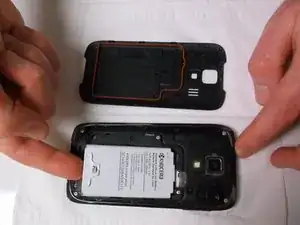

    • Use the tab marked "PULL" to remove the battery from its enclosure.

  3. UIULS4BYKMTVw5pr
    UIULS4BYKMTVw5pr
    RM1vUDQOh26liskw

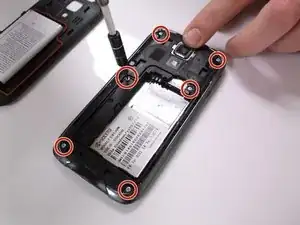

    • Remove the six Phillips #00 screws from the back of the enclosure.

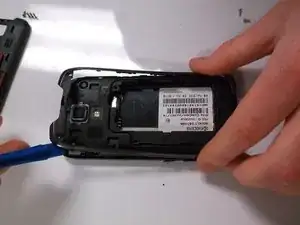

    • Use a plastic opening tool to gently remove the plastic piece surrounding the back of the phone enclosure.

  4. QyFSyyHqXDPcfknp

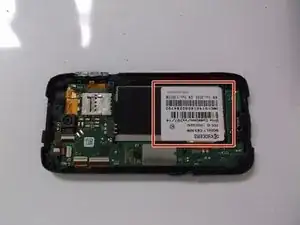

    • Remove the white sticker.

  5. SIYFslESdfTAByvI
    SIYFslESdfTAByvI
    eQbCLYGhGRMF4FuE

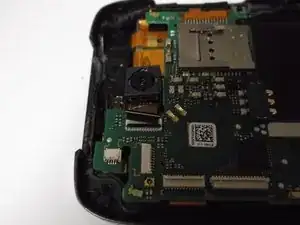

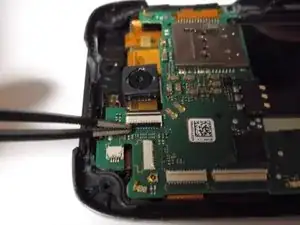

    • Using a pair of pliers, gently pry open the camera ribbon slot.

    • This will not take much pressure to open.

  6. F2fXRMtAaIqdgfLF

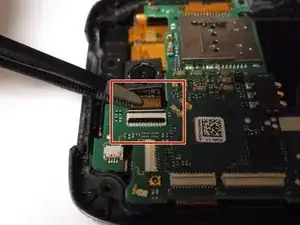

    • Gently remove the camera ribbon.

    • Be very careful not to rip the ribbon. Use tweezers if needed.

  7. CnRVETx365VFcFQl
    CnRVETx365VFcFQl
    CJ1NfLfntodG3r53

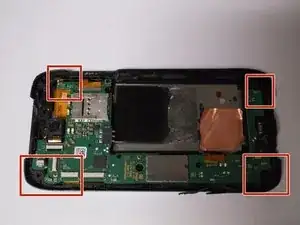

    • Using a plastic prying tool, gently loosen all 4 corners of the motherboard.

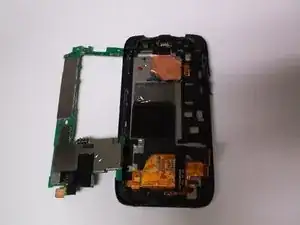

    • Lift the motherboard away from the phone enclosure.

  8. FMWPO4xQ4y5gZPP6

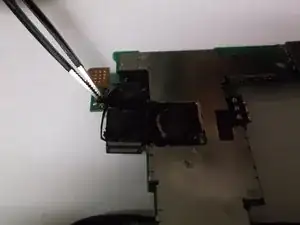

    • Remove the black sticker.

    • Be careful when removing the sticker. The sticker will need to be replaced after replacing the camera.

  9. mqAwWTOAnxrQhIfL

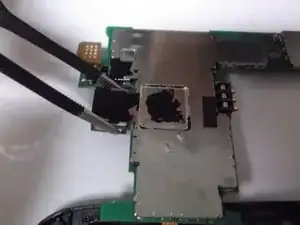

    • Remove the camera from the motherboard.

    • This step requires breaking metal.

    • Only cut along the camera square.

Abschluss

To reassemble your device, follow these instructions in reverse order.
