Einleitung
Sometimes the lock button gets stuck and needs to be replaced this guide will show you how to replace/ fix it.
-
-
Look for a small indentation on the bottom of the phone.
-
Insert the plastic opening tool into the indentation and lift off the back casing.
-
-
-
The large white component is the battery. Look for a small indentation under the arrow that says "LIFT."
-
Place the plastic opening tool in the indentation and lift the battery out of the socket.
-
-
-
Locate the screws holding the trim which are the four side screws on each corner.
-

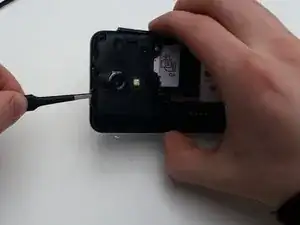

Remove each screw with a Phillips screw driver #J00. The screws are 5mm Phillips.
-
-
-
Locate the clasps holding the trim in place.
-
You will need to insert the metal spudger through the bottom of the trim and slowly push upwards to release the clasps.
-
-
-
Once you have taken the trim apart, the lock button will be easily removable.
-
The lock button is located on the top of the phone.
-

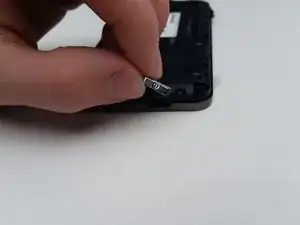

Take the tweezers and remove the lock button.
-
To reassemble your device, follow these instructions in reverse order.
