Einleitung
Providing information to disassemble the phone and replace the screen.
Werkzeuge
-
-

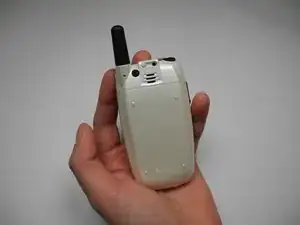

Make sure the phone is turned off before disassembly.
-

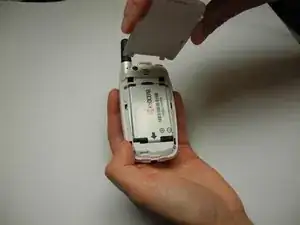

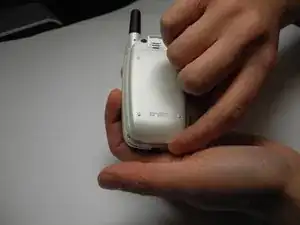

Lift the bottom of the phone's back cover upwards, revealing the phone's battery housing.
-
Remove the battery from the casing. This is simply a precaution.
-
Turn the phone over, so that the front side is facing you. Open the device in preparation for the next step.
-
-
-

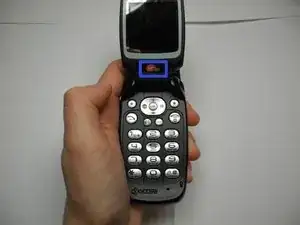

Peel the Virgin Mobile sticker off of the phone's screen to reveal two screws beneath it.
-

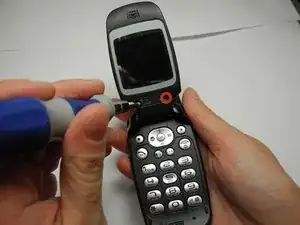

Use the Tri-Wing Y0 screwdriver to remove the two screws from the screen.
-
-
-

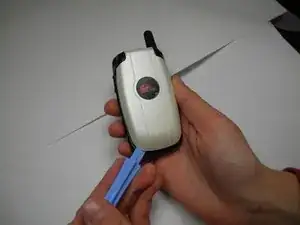

Lift the plastic cover of the phone screen upwards with a plastic opening tool.
-

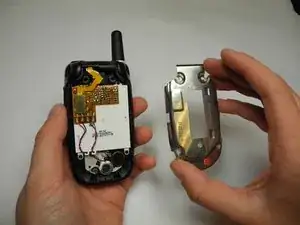

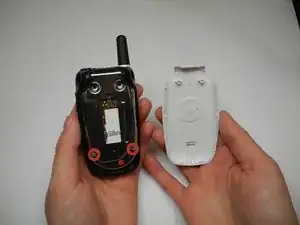

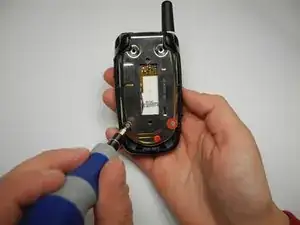

Remove the two screws from the metal cover.
-
-
-

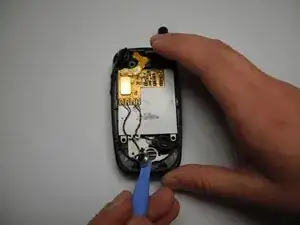

Use the plastic opening tool to pry the phone's speakers up and away from the device. These speakers will dangle by the wires attached to the board.
-

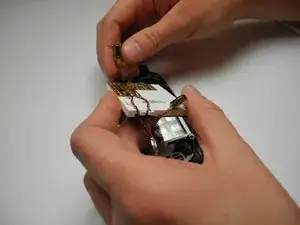

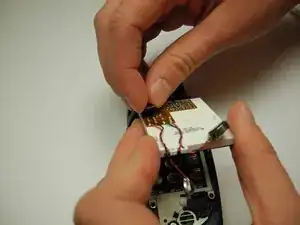

Use your fingernail to detach the ribbon connecting the board to the screen.
-

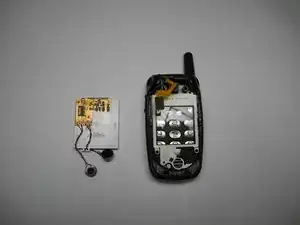

Remove the damaged screen from the device.
-
To reassemble your device, follow these instructions in reverse order.
