Kyocera QCP-2035 Microphone Replacement

When looking at the back of the phone, you will see a horizontal line and three raised segments of plastic in the form of a triangle.

Place thumb on top of the triangle and press into the phone while sliding your thumb towards the bottom of the phone.

In 5 mm it will stop sliding.

Grab the bottom of the back cover with your other hand and pull the cover the rest of the way off.

Turn the phone over slowly. The battery will fall out on its own.

Rotate the phone so the bottom is facing you. There is a small indent on the plastic face.

Using the tip of your fingernail or a spudger, pry the cover away from the rest of the phone.

Once the cover starts to part, keep separating until the top notches detach.

With the cover plate separated, you will see (6) T6x11mm torx screws recessed in the white plastic.

Remove screws.

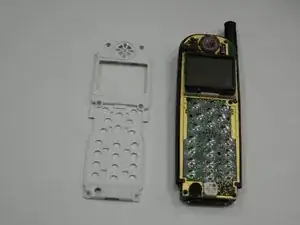

The white plastic face plate lifts right off, exposing the main board.

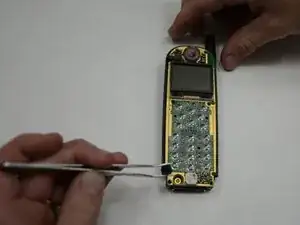

Locate the microphone at the bottom left corner of the phone.

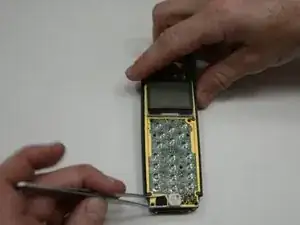

using tweezers, Lift the microphone straight out of the phone.
