LG 1010 Front Cover Replacement

Geschrieben von: Nicholas Schmidt
  • Kommentare: 0
LG 1010 Front Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. dKxwKAVxvRFfXrCt
    dKxwKAVxvRFfXrCt
    VYQaehf4nWAcZi3n

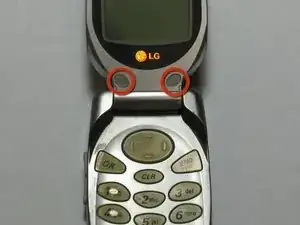

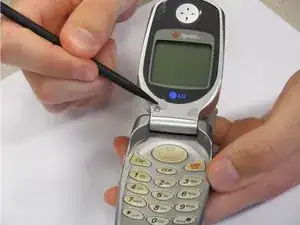

    • Use a Spudger to remove the two front plastic covers to reveal screws.

  2. J5H2EOg11CvND4af

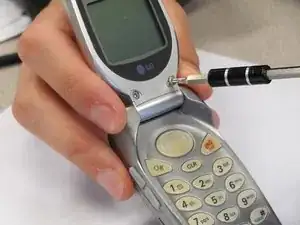

    • Remove two screws using a Torx T6 screwdriver.

  3. hHaFQRQhPIfElqE1
    hHaFQRQhPIfElqE1
    ypdSZK4kUaNX2NTV

    • Pry off the screen front cover with a small flathead screwdriver.

  4. cRkRrTbDwKL2qYQv

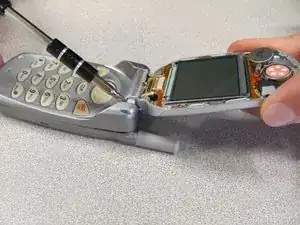

    • Insert a small flathead screwdriver into the hinge and separate hinge connection.

  5. iTraHFqwYZLBdqZR

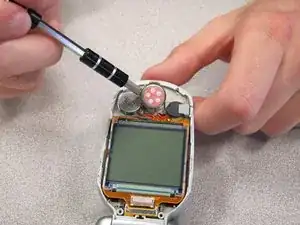

    • Pry off the speaker which is glued on to the front cover using a small flathead screwdriver.

  6. 1e4xGhGoFK3jQZQL

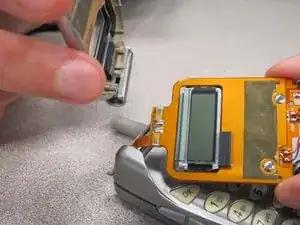

    • Remove remaining portion of the front case from the flexible circuit board.

    • Do not attempt to remove the LCD board at this time, as it is attached to the rear panel assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
