LG 1010 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

This repair guide will instruct the user on the proper technique for removing and replacing a broken keypad for a LG 1010 Cell Phone.

  1. DWvRKFguMjPRdVMB

    • Turn off the cell phone and place face down on a flat surface.

  2. WQKtyQMNRsnS2Mhm
    WQKtyQMNRsnS2Mhm
    6qNPpqshXA2W1mTh

    • While sliding the gray tab up, lift battery up and away from the cell phone.

  3. PtWxrfEEfhS4MwQ3
    PtWxrfEEfhS4MwQ3
    VBb1PBFZgfGw5XJH
    qhZtOQxbCTc3GXIM

    • Remove battery and set aside.

  4. VqgQ6TkIqYK16kvr

    • While holding cell phone firmly in one hand, unscrew and remove the antenna with the other hand.

  5. 5MrsT3FrnhQTZKBR
    5MrsT3FrnhQTZKBR
    Co1M216mLhxJCL3M

    • Pull the antenna housing (black tube) towards bottom of phone and remove.

  6. Oxj32Ds4naTrjnrC
    Oxj32Ds4naTrjnrC
    gOWWCJtJZCyHqudS

    • Unscrew the four screws on the back case using a T6 Torx Screwdriver.

  7. 5ybrK24MR4RJA5my
    5ybrK24MR4RJA5my
    GSqYXkiWqRGFDy5Q

    • Pull the back cover straight off the phone using your thumb and forefinger.

  8. slbEaaiSfYtBngrL

    • Pry off circuit board with a flathead screwdriver.

  9. CtLPIDDYrMgxBWPL

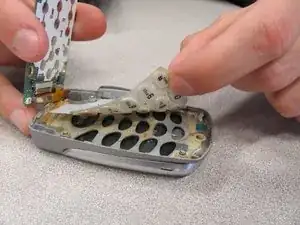

    • Pull out flexible keypad.

Abschluss

Install new keypad and reassemble following these instructions in reverse order.
