LG 305C Camera Replacement

Geschrieben von: Ashley Kidwell
  • Kommentare: 0
LG 305C Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

7 Minuten

Einleitung

Before completing this replacement guide, it is important to unplug the device. This replacement guide will show how to replace the camera from the LG 305C.

  1. VYjvTEsg3itiJ3xP

    • Pry open the back case on the device with a plastic opening tool and remove it.

  2. RZcInJjwoKly6B1V

    • Pry the battery out of the device with a plastic opening tool and remove it.

  3. BU5iNDTKF2mvpAMg

    • Dislodge the microSD card from the microSD card slot using your index finger and remove it.

  4. PoViD1NE6USUjywA

    • Remove the three 4 mm screws using a JIS screwdriver with a J000 head from the bottom part of the internal casing.

  5. iEhGyl4mMWSr6vnj

    • Pry open the bottom part of the internal casing with the plastic opening tool and remove it.

  6. IyNKywyIOOAgJ3Kh

    • Remove the four 4 mm screws using a JIS screwdriver with a J000 head from the top part of the internal casing.

  7. pQDDL6jGRDEgnP5x

    • Pry open the top part of the internal casing with the plastic opening tool and remove it.

  8. nQADyAnDO3wZUd5m

    • Pry the screen from the internal circuit board with a plastic opening tool and remove it.

  9. 6frwlmCDXELMyQcU

    • Pry the camera from the internal circuit board with the plastic opening tool and remove it.

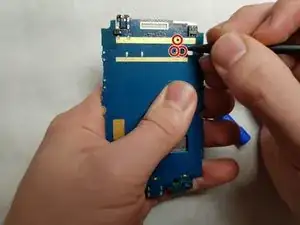

  10. EsWAK2E1DTsBW1Xm

    • Detach the camera completely by using the spudger tool to poke through the camera attachment holes.

Abschluss

To reassemble your device, follow these instructions in reverse order.
