LG 305C Internal Casing Replacement

Geschrieben von: Ashley Kidwell
  • Kommentare: 0
LG 305C Internal Casing Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

Before completing this replacement guide, it is important to unplug the device. This replacement guide will show how to replace the internal casing in the device.

  1. VYjvTEsg3itiJ3xP

    • Pry open the back case on the device with a plastic opening tool and remove it.

  2. RZcInJjwoKly6B1V

    • Pry the battery out of the device with a plastic opening tool and remove it.

  3. PoViD1NE6USUjywA

    • Remove the three 4 mm screws using a JIS screwdriver with a J000 head from the bottom part of the internal casing.

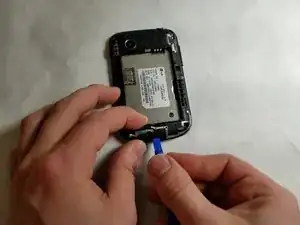

  4. iEhGyl4mMWSr6vnj

    • Pry open the bottom part of the internal casing with the plastic opening tool and remove it.

  5. IyNKywyIOOAgJ3Kh

    • Remove the four 4 mm screws using a JIS screwdriver with a J000 head from the top part of the internal casing.

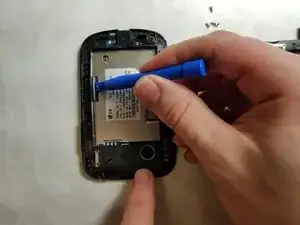

  6. pQDDL6jGRDEgnP5x

    • Pry open the top part of the internal casing with the plastic opening tool and remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
