LG 32CS560 Power Supply Board Replacement

Geschrieben von: Coyt Barringer
  • Kommentare: 1
LG 32CS560 Power Supply Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

1 Stunde

Einleitung

Replacing the power supply board inside the LG 32CS560 is a simple task to complete with the proper preparation. It involves opening up the TV, identifying the bad power supply board, removing it, adding a new power supply board, and re-assembling the TV.

Note, only replace the power supply board if you know it is the cause for your TV's problems. If the TV doesn't turn on or only the LED's on the front of the TV turn on, then the power supply is likely to blame. Use the troubleshooting guide to help you determine if you need to replace the power supply board. Also, an annoying wining noise or burn marks on the power supply board indicate it has failed.

Please have a replacement power supply board ready to go as well. The model of power supply is the LGP32-12P. You can purchase it from numerous sites such as eBay here.

  1. CLkNkENILLLWsThe
    CLkNkENILLLWsThe
    E6RAgqXQ5IK3vvLM

    • Lay the TV face down on a soft surface

    • Remove the base of the TV by unscrewing the 4 base screws.

    • There is no base on the picture, the position of the base is marked whit the red box.

  2. alTBhvXxSbRFSPcY
    alTBhvXxSbRFSPcY
    hNthhYpeBpFgmTHY

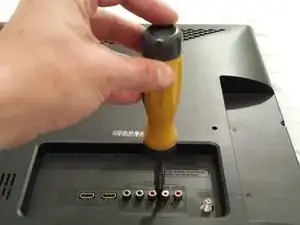

    • Remove the 15 Phillips head screws on the back of the TV.

    • Carefully remove the black plastic back panel of the TV to expose the electronics inside

  3. RmIHV6oBUGaZdolb
    RmIHV6oBUGaZdolb
    ZdEMQSwYR2Vs6Kw1
    FLdTOwp2JkIKiCml

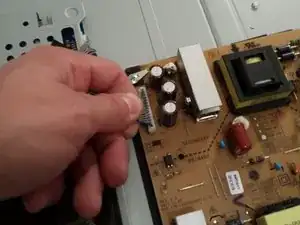

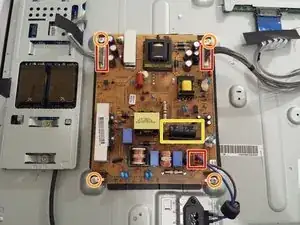

    • Carefully disconnect the three wire bundles attached to the power supply.

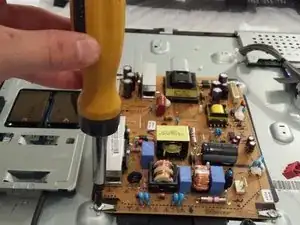

    • Remove the four screws holding the power supply in place.

    • Now you can lift out the Power Supply Board.

    • If the black cylindrical component marked with yellow seems to have expanded or is leaking liquid or goo, then the power supply board is definitely bad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
