LG 440G Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

If the keypad on your LG 440G phone has worn out or unresponsive, you may want to replace it, Use this step-by-step guide to learn how to change the keypad.

  1. iKRmjUMPvUZba12x

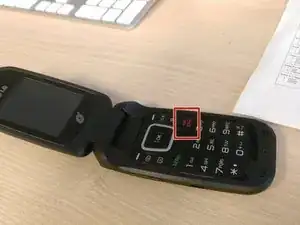

    • Turn the device off.

    • To do so, press and hold the red button.

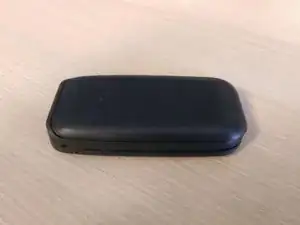

  2. HdBUBBWWhsvM3HSo

    • Flip the phone over.

  3. fRJLLpb2TlYQGaZP

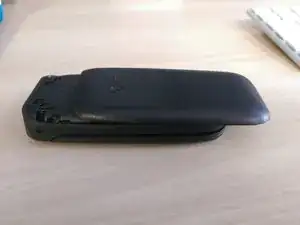

    • Slide the rear cover downward

    • Lift it off to access the battery

  4. vNwXUEJsKer3LC3v

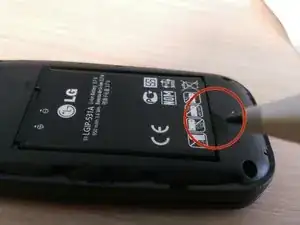

    • Locate the small rounded recess to get access to the battery

    • Gently, lift the battery

  5. KcfTHR1LUWfK4ovk

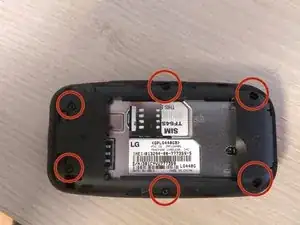

    • Use a Phillips #00 screw driver to remove six screws.

    • Save screws for reassembly.

  6. 2UsVGHWKViWKgkeD
    2UsVGHWKViWKgkeD
    eYiVC1gb1kOLhDAZ

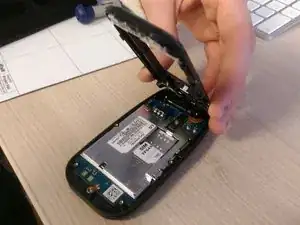

    • Run the plastic opening tool along the edge of the phone to release the casing cover.

    • Lift the casing cover.

  7. UPEsth2dKgDPb6ZE
    UPEsth2dKgDPb6ZE
    jMCyLXCreA45UlUk

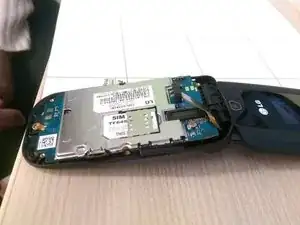

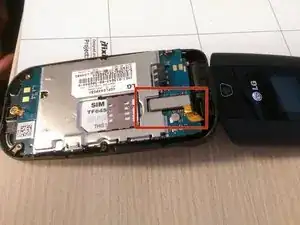

    • Use the plastic opening tool or fingernail to lift the rectangular piece up. The piece can be identified by the orange tape attached to it.

  8. ZtfbKVt2FlkhqSSN

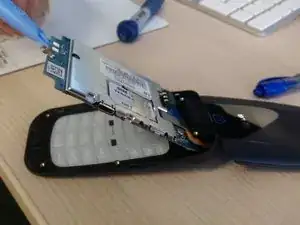

    • Dislodge the logic board using a plastic opening tool.

    Phone screen does not work when reassembled black screen

    Why is that

    Debra -

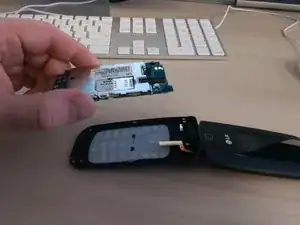

  9. QrHgtFuK6TnvIu2B

    • Remove the logic board by lifting up.

    The phone does not work after reassembled.  The screen is black can not access anything, no contacts make calls what happened

    Debra -

    Can someone help me fix it I am without a phone now!!!

    Debra -

    The front section was moved after motherboard was lifted out.  I put it back in and put motherboard back in and reassembled it.  Can not access it.

    Debra -

  10. Wn2GaOBfqukPpuF1

    • Remove the keypad from the phone by pushing the keypad itself out from the front of the phone. Then, lift the keypad out of the casing to separate the keypad from the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
