LG Aristo MS210 Screen Replacement

Geschrieben von: Michael WIlliams
  • Kommentare: 13
LG Aristo MS210 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide was developed to demonstrate and teach the proper way to replace the screen and digitizer of an LG Aristo MS210 version.

  1. sOUigsrWwKTXQDWb

    • Identify the problem.

    is this crack in the screen replacement or is it cracked through the screen replacement and the digitizer to the lcd?

    Steve Hill -

  2. CmtLukQmFJbOOjUX

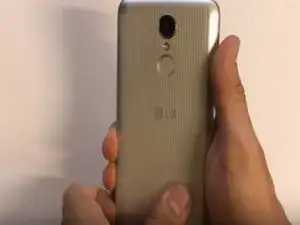

    • Remove back plating to expose the battery, sim card, and SD card (if applicable)

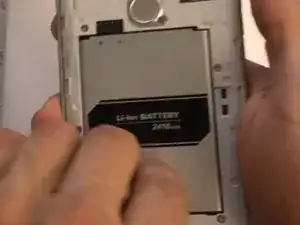

  3. X2fOrwDPpKN5TCOA
    X2fOrwDPpKN5TCOA

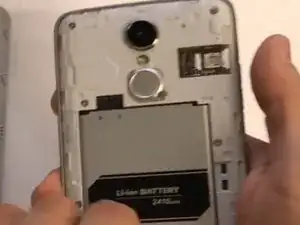

    YDlpkCWkifN5ghye

    • Remove the battery.

    • Remove the Sim Card

    • If applicable remove the SD card.

  4. gcuguGtSttxFtdCl

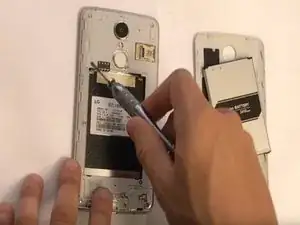

    • Remove the ten screws with a Phillips #00 screwdriver.

  5. LCil52KhYIULJJCE

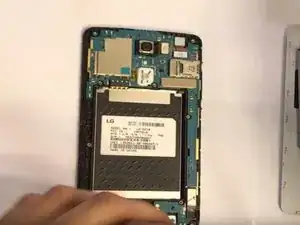

    • Use finger nail or wedge to gently remove dust cover, and reveal the motherboard.

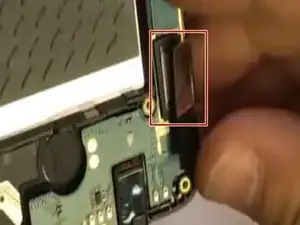

  6. yyyDYT6nOnKT4OYa
    yyyDYT6nOnKT4OYa

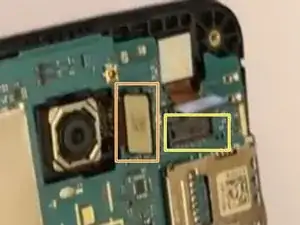

    OBFhlWeimTOFXKGq

    • Detach the bottom cable from the socket.

    • Detach the cable from the socket.

    • Detach and move the cable out of the housing.

  7. GFaXjX4rl5HbKmNe
    GFaXjX4rl5HbKmNe
    npTmpRLjRPILWMYB

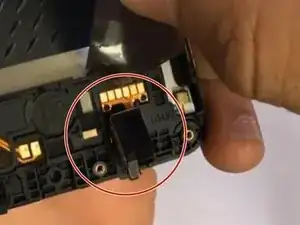

    SRtdfhqWmwCmqQBK

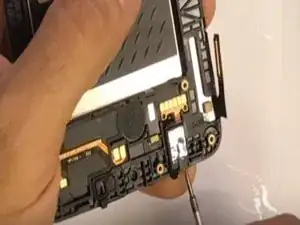

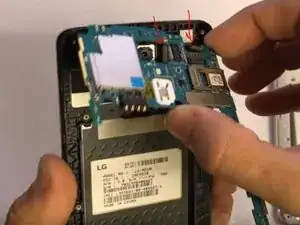

    • Remove the motherboard.

    • Remove the front facing camera (top)

    • Remove the audio jack (bottom)

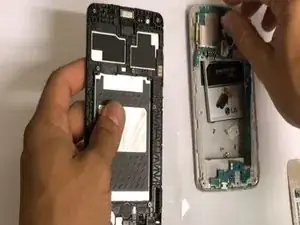

  8. pECUqaSQNXTepqK5

    • Place components onto new screen/ digitizer.

    What the part call when the Loud speaker goes on it next to the Headphone Jack

    Edin Cerritos -

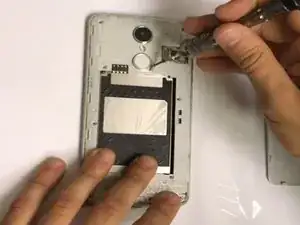

  9. QHHgr3Tt3WLDFFJj
    QHHgr3Tt3WLDFFJj

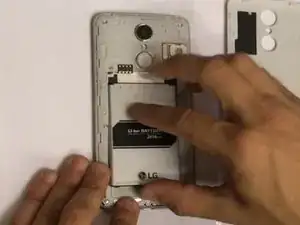

    EFGIYyEPqQeaHiiO
    TRijGujmg1r4KCa6

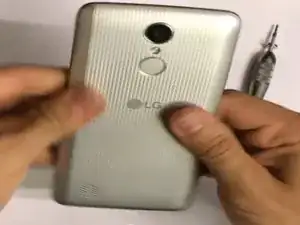

    • Reattach back plating.

    • Use mini screwdriver to firmly attach back plating (10) screws.

    • Reattach insert SD card, Sim card, and battery.

    • Reattach back cover.

  10. OiA3SVZR4HLUgSNK

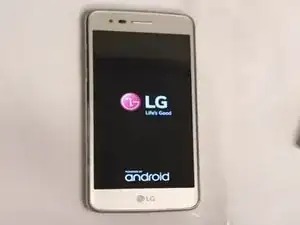

    • Power on mobile device and make sure everything works properly.

    I changed the screen and I can't get it to come on when I plug in the charger it shows a picture of a battery charging for a minute then back to a blank screen

    John day -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Michael WIlliams

Mitglied seit: 18/09/17

570 Reputation

10 Kommentare

Does the charging port can be replaced?

Mandy -

What if my touch screen doesn't work after replacement? I can see start up screen. It just doesn't respond to my touch. Please help!! Thanks

Athena -

4 Possible answers to this:

1. The digitizer is bad - this is uncommon but not unheard of. Roughly %5 of the screens my shop gets in are bad. Most distributors accept returns on defective parts.

2. The digitizer isn’t plugged in to the board

3. The digitizer port on the motherboard is damaged - this can be tested by trying a known good screen.

4. Software issues. This is most common in iPhones, in my experience. So far as I understand, parts can have hardware identifiers similar to a MAC address. Suddenly changing the hardware can “confuse” the software. You can try a force reset or resetting the phone.

James Heinrich -

reconnect the motherboard and make sure its properly replaced

Travis Lasta -

I guess this is different than older phones where the digitizer and lcd were separate and when you cracked it you could just buy a new digitizer and replace it without having to buy the lcd with the digitizer.? am I correct in this fact because I see that you can buy the black or white Screen replacement with the lg logo without having to buy the lcd is the screen replacement just like a glass protector for the digitizer and lcd? Like a built in glass screen protector that you would normally add on to stop scratches and a cracked screen or is the screen replacement the digitizer like say the lg optimus f60 and the lg motion where the outer screen with the lg logo and the black part of the screen were part of the digitizer?

Steve Hill -

what part do i need to fix the cracked screen and i see black marks under the crack on my lg aristo. i need some help give me ideas

justin hall -

You’ll need a LCD/Digitizer assembly such as https://www.amazon.com/Screen-Digitizer-.... The black marks are almost definitely breaks in the LCD screen.

James Heinrich -

Michael for heaven’s sake add steps for the headphone speaker and difficulty of removing the headphone jack cable. You’re doing people a real disservice by leaving those out.

Zach Miller -

I cracked my screen and it has been working din but now it is not working u can see my screen but the touch is not working

Maria -

How do I remove the dust cover? I’ve removed all the screws but it still seems like it’s on there pretty snug, and the picture for that step doesn’t show much.

Sam -
