LG Aristo MS210 Front and Rear Camera Replacement

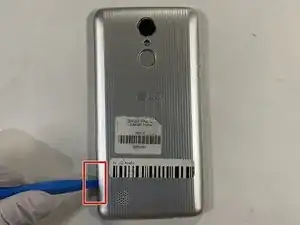

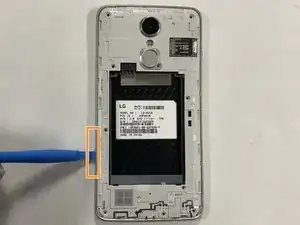

Insert the spudger into the notch on the bottom left side of the phone.

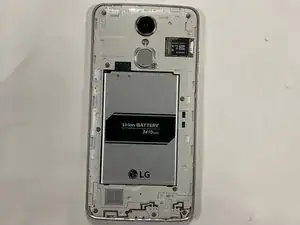

Apply light pressure to remove the back cover.

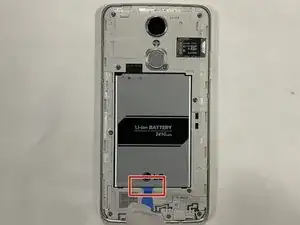

Insert the spudger into the notch located on the bottom middle of the battery.

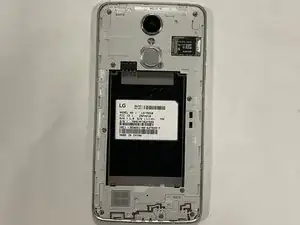

Apply light pressure to remove the battery.

Use the PH000 bit unscrew the ten 3.4mm screws as highlighted.

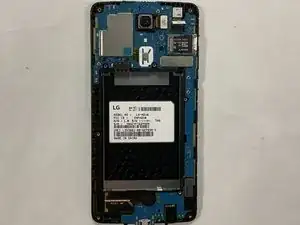

Use the spudger to remove the inner shell.

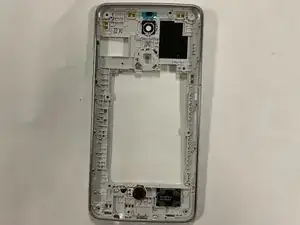

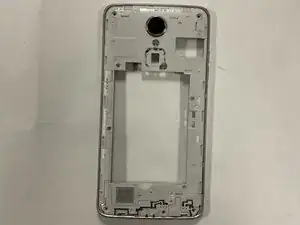

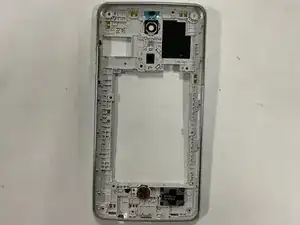

Flip the inner shell over to expose the clips holding the command button.

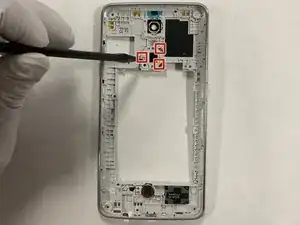

Use the spudger disconnect the three clips holding in the command button as highlighted.

Remove the command button.

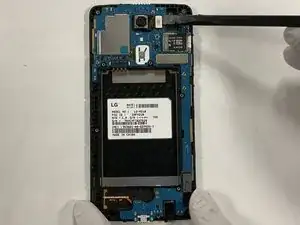

Use the spudger to disconnect the ZIF connector securing the front-facing camera.

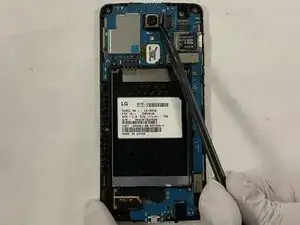

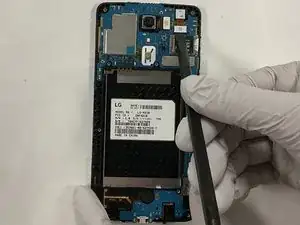

Use the spudger disconnect the ZIF connector securing the back-facing camera.

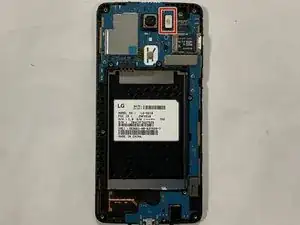

Remove both the front and back facing cameras.
