LG Aristo Screen Replacement

Geschrieben von: Geobanny Cardenas
  • Kommentare: 1
LG Aristo Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

The guide was develop to help replace the screen of a LG Aristo, also known as LGMS210 or MS210.

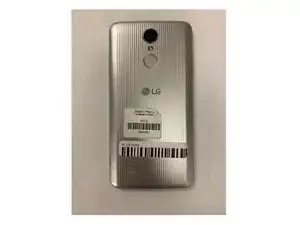

  1. pVgIEObSjpUBeR5A

    • Turn off the device and make sure you are working on a flat, lit surface.

  2. IXFSaIqsQkNfGcap
    IXFSaIqsQkNfGcap
    4oL3CoIZtdmX6wV5

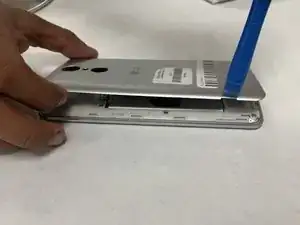

    • Use an iFixit opening tool to pry off the back case.

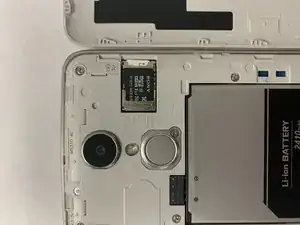

  3. mp5GRVVL3hZIuRF5
    mp5GRVVL3hZIuRF5
    HKoOZYPlCcrwsadY
    WZqREZpmoNBJI1nc

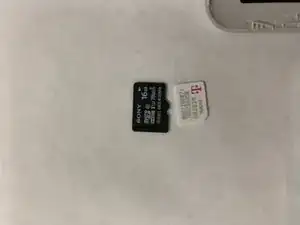

    • Remove the SD and SIM cards by sliding the cards out with your finger.

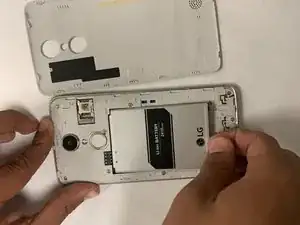

  4. FROWdgOCnnT3dVoQ
    FROWdgOCnnT3dVoQ
    txLgcA6ZKm2TNL1U
    FnVtyteLoFPBKcqb

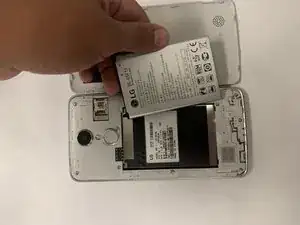

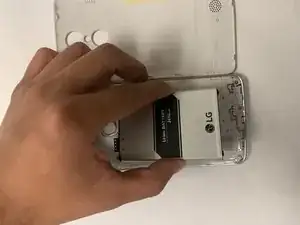

    • Remove the battery by prying it up with a fingernail or opening tool from the bottom edge.

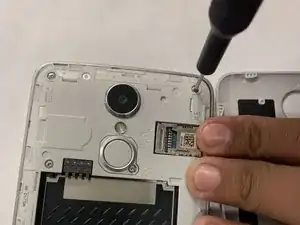

  5. aTJROrRWFgxWVFwS
    aTJROrRWFgxWVFwS
    IFA4qUaBTf1fT2Gk

    • Remove the ten screws from the midframe with a Phillips #000 screwdriver.

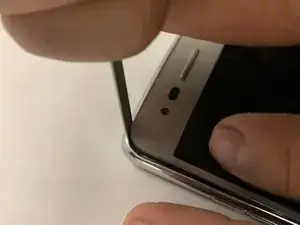

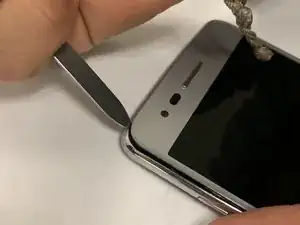

  6. hv3SvGWSVy6TZFOL
    hv3SvGWSVy6TZFOL
    O5JcPSc26HWREb6Y

    • Pry up on the screen with a plastic opening tool.

    • Try to avoid using a metal spudger as shown in the images as it has the possibility to damage the screen.

  7. 2emHVoXqMHRUPr3M
    2emHVoXqMHRUPr3M
    TcyZFPAr4hLTPxqf

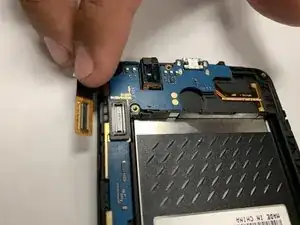

    • Detach the cables from the press fit connectors.

    • There are four connectors in total, they consist of two on the cameras, one on the ear jack, and the one attached to the motherboard.

    • You can lift them up with you finger or you can use tweezers (optional).

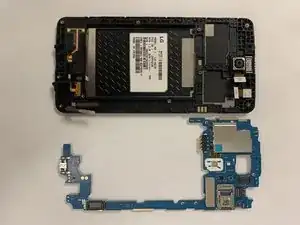

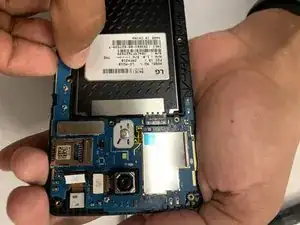

  8. ZT56GxvMNcEeUREN
    ZT56GxvMNcEeUREN
    TCnVnVUV1VBCZObA

    • Gently remove the motherboard.

  9. a2TNdRWdpPFQBrUy

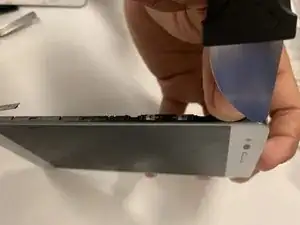

    • Replace the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order. I hope that these steps have helped you with your issue.

Tinte & Feder

Geobanny Cardenas

Mitglied seit: 26/08/19

184 Reputation

Ein Kommentar

Do i need Loca Glue to replace the outer Glass?

chuck -
