This guide will show you how to open up your Blu-ray player and remove the disc drive, whether it is to install a new one or gain access to the disc drive's components like the reader and tray motor.
Werkzeuge
-
-

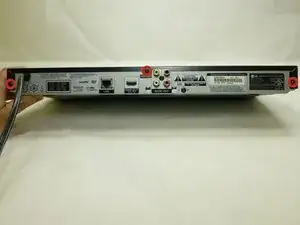

Remove the three black 3/16” Phillips #2 screws from the backside of the player.
-

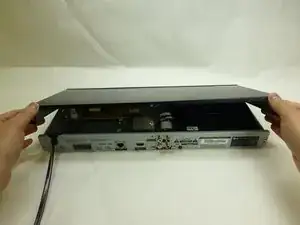

With the backside (audio/video jacks) facing you, lift the part of the cover closer to you and pull until it is off.
-
-
-

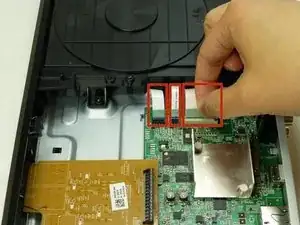

Using your fingers, pull the three tape-like cables to disconnect the disc drive from the green motherboard.
-
-
-
Unhinge the tabs that attach the front panel to the unit:
-

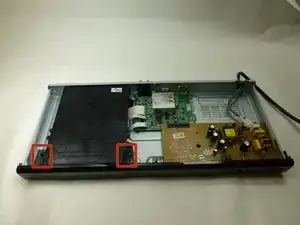

Two tabs on the disc drive
-

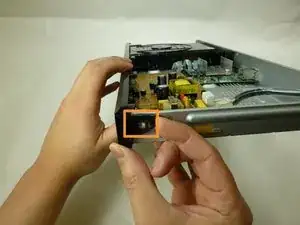

Two tabs on the left and right side of the player
-

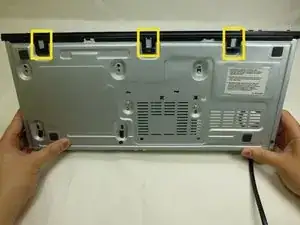

Three tabs on the underside of the player
-
Pull panel away from case.
-
-
-

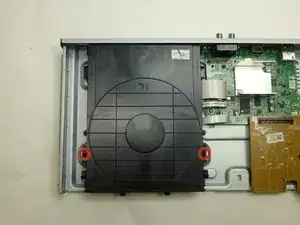

Remove the two black 3/16” Phillips #2 mounting screws from the left and right side of the disc drive.
-

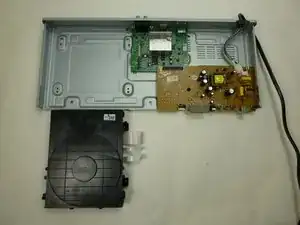

With the front side facing you lift the front of disc drive and pull out to remove.
-
To reassemble your device, follow these instructions in reverse order.
