Einleitung

The front housing is the glossy front cover of the phone which can get scratched easily.

  1. F26LeKAPIyweJ1gP
    F26LeKAPIyweJ1gP
    yZXTxCheZLMEvloX

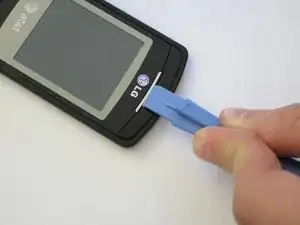

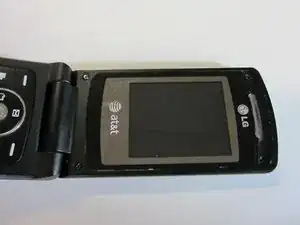

    • Use an opening tool to remove the thin silver part covering the speaker at the top of the phone.

  2. AIBHEbRb5vWyjLBt

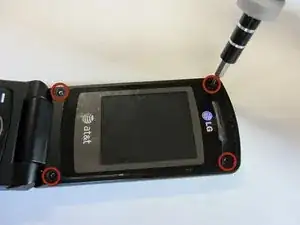

    • Remove the four 3 mm Phillips #00 screws.

  3. XiDIbInl4SNmkOHd
    XiDIbInl4SNmkOHd
    5XOrWCIsXb53qUGC

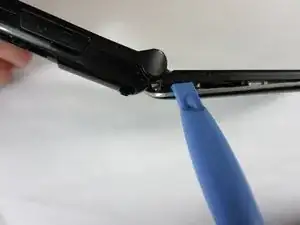

    • Insert the opening tool in the seam between the silver and black parts of the phone casing.

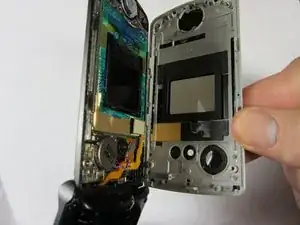

    • Remove the front housing by running the opening tool around the perimeter of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
