LG Chocolate 3 Front Faceplate Replacement

Geschrieben von: Brenna Yagade
  • Kommentare: 0
LG Chocolate 3 Front Faceplate Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

45 Minuten

Einleitung

Use this guide to replace the front faceplate of your LG Chocolate 3. Be patient in removing adhesive and mindful of fragile parts.

  1. rRWfN3dVkB32TGUT

    • Use the plastic opening tool to lift the front faceplate from the device.

    • The faceplate has adhesive in multiple areas. Loosen the faceplate around all of the edges first to make it easier to remove.

  2. 2O2FUIdNC2lODxJJ

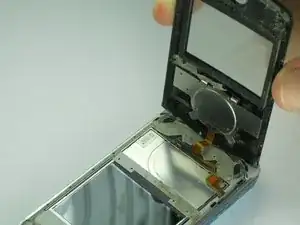

    • The scroll wheel has an orange display data cable attached which may rip from excessive force.

    • Lift the front faceplate up gently.

  3. BpaHKe1tcFsqqXTS

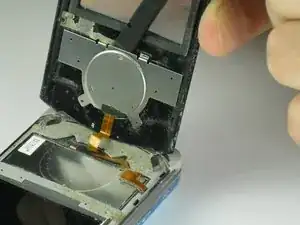

    • Be careful not to rip the orange display data cable or drop the scroll wheel on the LCD screen.

    • Use the flat end of the spudger to pry the scroll wheel from the faceplate.

  4. 2U6KfACgjpVSy2Uf
    2U6KfACgjpVSy2Uf
    VkSZrouYXZLhR1Ub

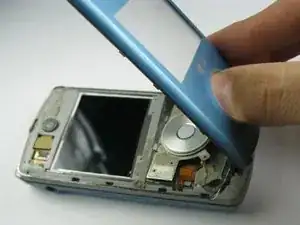

    • Separate the front faceplate from the device completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
