LG Chocolate 3 Side Buttons Replacement

Geschrieben von: Brenna Yagade
  • Kommentare: 0
LG Chocolate 3 Side Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

50 Minuten

Einleitung

Use this guide to replace the side buttons. Be prepared to deal with small parts, including screws and the buttons themselves.

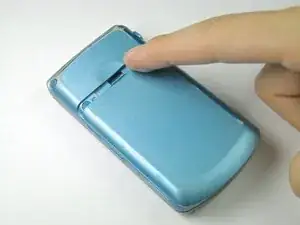

  1. bRko1e2NUtVLswkr

    • Turn the phone off before starting the replacement process.

    • Place the phone face down.

    • Press your finger down on the indentation and slide the back plate off.

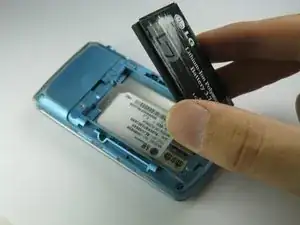

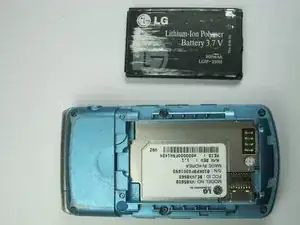

  2. 4ZVsmHTpXGyUFRoD
    4ZVsmHTpXGyUFRoD
    tnRZMWysLnDCGpgL
    GoWWxjlupaCLh5In

    • Using your index finger lift and remove the battery from the phone.

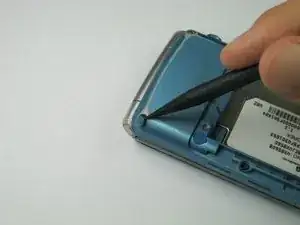

  3. TReSicEsOZmJXw3q

    • Use the pointed end of the spudger to pull out the plastic inserts that are located on the left and right-hand corners.

    • If needed, use the tip of a push pin instead of the spudger to remove the plastic inserts.

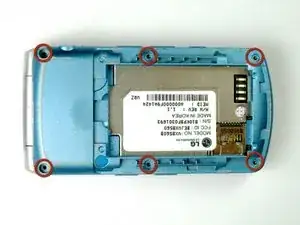

  4. R1FMWXS4gNqFmQeQ

    • Using a Phillips #00 screwdriver, remove the six 3mm long screws found along the edges of the phone.

    • If needed, use tweezers to remove loose screws from the recessed holes.

    • Screws are small, therefore, they should be placed in a secure location to prevent misplacement.

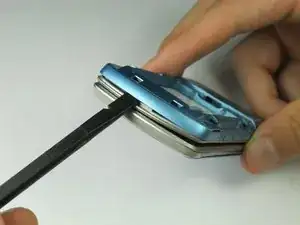

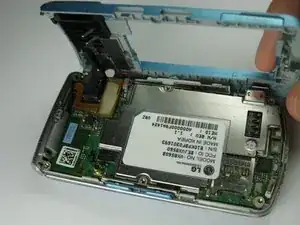

  5. LurUKvMDMEY6TogQ
    LurUKvMDMEY6TogQ
    hsjCyylNQaNM1hD4

    • Pull the rear case up using the spudger.

    • The rear case is connected to the right side of the phone via red and blue cables, be careful not to pull these cables out.

    • The volume control buttons on the side might fall out of their sockets. Carefully replace them with a pair of tweezers before you reassemble the rear case.

  6. HUb2dK1HronukiJx

    • Use tweezers to pull the clear end of the red and blue speaker cables away from motherboard.

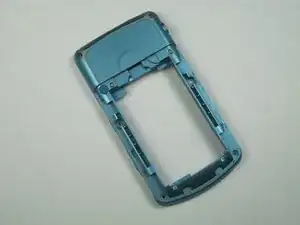

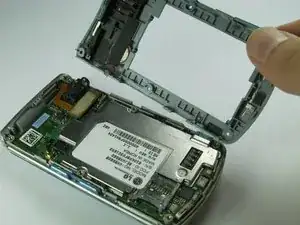

  7. JLiN5rKiYng23BuE
    JLiN5rKiYng23BuE
    CluUThgiNwPnbuLO

    • Carefully remove the rear case from the phone.

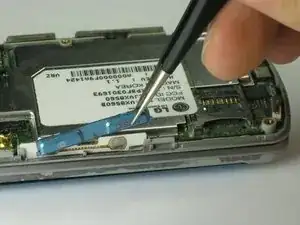

  8. uvQ31A3EmPAQjQKO

    • Use tweezers to remove the music button found on the side of the phone.

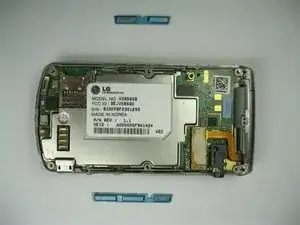

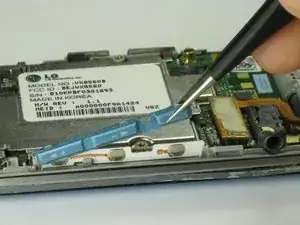

  9. YaLlqXTMkkaYHeZ6
    YaLlqXTMkkaYHeZ6
    CeFn5jdgDM64ViHw

    • Use tweezers to remove the volume control buttons on the opposite side of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
