LG Cosmos 2 Speaker Replacement

Geschrieben von: Nick White
  • Kommentare: 0
LG Cosmos 2 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. sQDRDYEZwH5tiJWB
    sQDRDYEZwH5tiJWB
    I5OXtoYRUjAtf5rN
    OxtLVD2iVJxkJbVL

    • Insert the plastic opener into the slot at the top of the device.

    • Apply gentle pressure with the plastic tool to pop the back case off.

  2. dfjnRTFJmJogJ5NN
    dfjnRTFJmJogJ5NN
    4GwDNQGTMhAYoHHQ
    bFEMh1R5SqaaEwgV

    • Use the plastic opener to lift, and remove, the device battery.

  3. Gdi1iSUJGZpvUvh5

    • Use a screwdriver and corresponding bit to remove the six 2mm screws that are located along the edge of the rear case. Set the screws aside.

  4. TEocVeK5t2ErTBZl
    TEocVeK5t2ErTBZl
    haBq1rWUiEYfRvsw
    CNQpBR1tUCgwr1VO

    • Use the plastic opener to pry the rear case loose.

    • This can be difficult. You will need to pry around the entire edge of the rear case, not just in one place.

  5. 3xHyn4aperNoPbWO
    3xHyn4aperNoPbWO
    1WGDacKNJoIkHN6Z

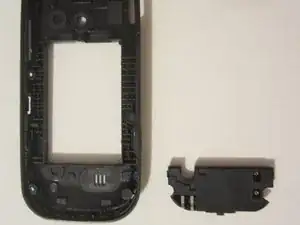

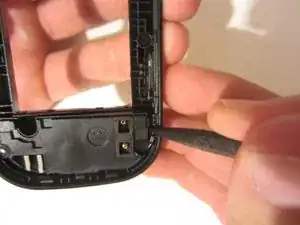

    • Use the TOOL to pry open the plastic piece located at the bottom of the rear case. This piece contains the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
