LG Cosmos Silicon Keypad Replacement

Geschrieben von: Johnny Phane
  • Kommentare: 1
LG Cosmos Silicon Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

30 - 45 Minuten

Einleitung

If the QWERTY silicon keypad is worn out or damaged, it is replaceable. It requires time and a lot of disassembling.

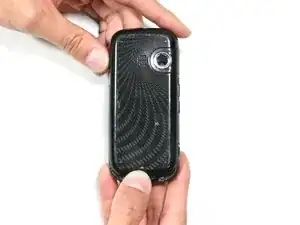

  1. uQQLLiQGlXLUZEgN

    • Apply an upward force to slide the back cover off.

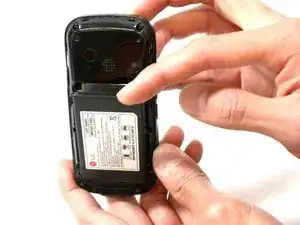

  2. 46sSMLiX3VOC2tNn

    • Use your finger to push down on the top of the battery and pull it out.

  3. BiIGW3QfOQaNv5Dk

    • Remove the five 3.0mm Phillips #000 screws along the edge of the rear case.

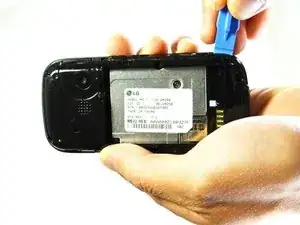

  4. FujYESQLKTLygCAu

    • Use a plastic opening tool to pry the rear case loose.

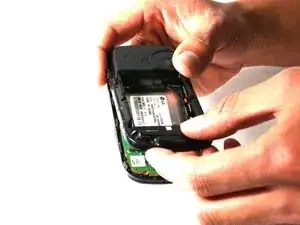

  5. 2QsAP6pwPj6Wabdl

    • Once the rear case is loose, lift it from the rest of the phone.

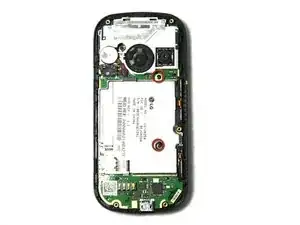

  6. jyHcJrOeccvhOlCr

    • Remove the two 2.9 mm Phillips #000 screws that are slightly off-centered to the right.

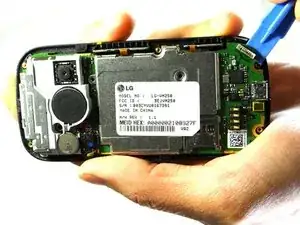

  7. i4YH63yDVByKoNv4

    • Use the plastic opening tool to pry the motherboard loose.

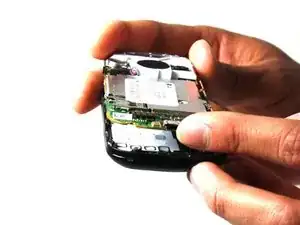

  8. uDXObkfqdlaZAiQI

    • Hold the motherboard from the top and bottom and slowly lift the motherboard until you feel a pull.

    • The flex cable is attached at the bottom of the motherboard and can be damaged if too much lifting force is applied.

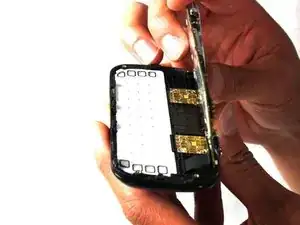

  9. LSOZDkGnHtUHGSFO

    • Once the motherboard is lifted , rotate the motherboard up 90 degrees to the right.

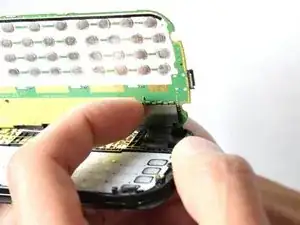

  10. Y2E3OFpT1RJpwXJW

    • Use your finger to pull the flex cable out from its connector.

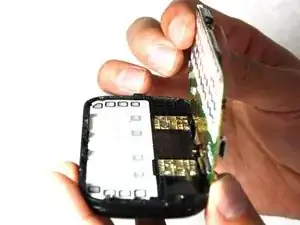

  11. XERYFpwC6sJJKZQO

    • Pull the motherboard away from the rest of the phone.

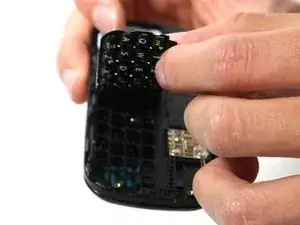

  12. EPILRLtqgeEDSFXM

    • Lift the silicon keypad away from the rest of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Johnny Phane

Mitglied seit: 16/04/13

70 Reputation

Ein Kommentar

Steps 10 and 11 are not necessary for replacing just the silicone keypad. As long as you are careful not to pull on the motherboard, once you have the motherboard rotated up, you are able to replace the silicone keypad directly from that point.

Randy -
