Einleitung

Use this guide to install a new screen in your LG Dare.

  1. KsFYRgQqAyQZnIjO
    KsFYRgQqAyQZnIjO
    F5IUKvwkWPNxZYrL

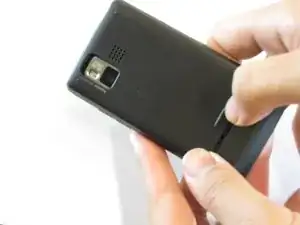

    • Remove the back cover by firmly pressing against the raised lip on the back panel. Slide the cover towards the top of the phone.

  2. xxtFhpDVTq4nv4DL
    xxtFhpDVTq4nv4DL
    MsRuE4IDiQYOjVdG
    E1kxlppxxREx21Iy

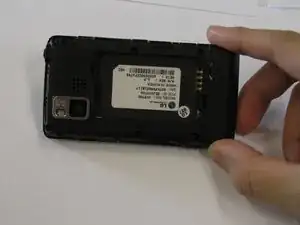

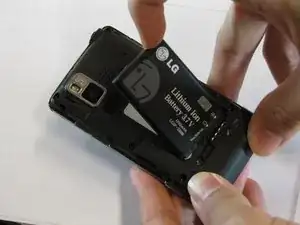

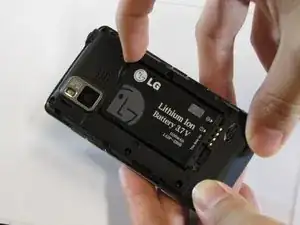

    • Remove the battery by placing your fingernail or a opening tool in the recessed edge and lift the battery out.

  3. IYQdrBTfCcQuig4F
    IYQdrBTfCcQuig4F
    R1kXG1OP5NsIhvAQ

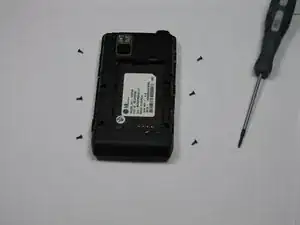

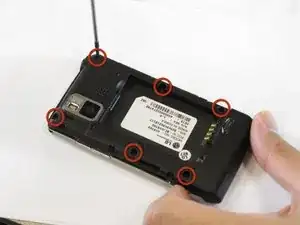

    • Use the #00 screwdriver to remove the six 4mm phillips screws located around the edges of the phone.

  4. HkAPkmmwa1coXkch
    HkAPkmmwa1coXkch
    YakUXFMJs3m4eOod
    ubEtDLqelCQXXUGY

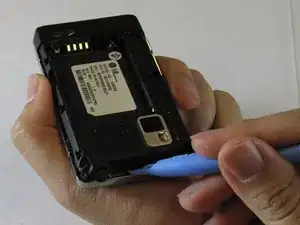

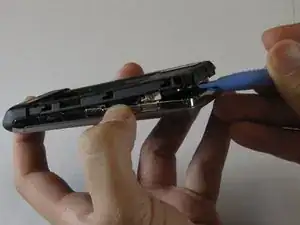

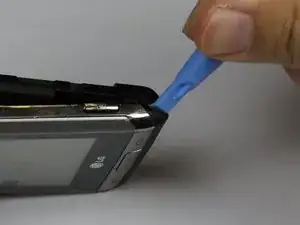

    • Lift the back plastic cover off by moving the opening tool around the edges of the phone.

    • Wedging the opening tool in several places on the bottom of the phone will help release small tabs that hold the back to the front frame.

    • The side buttons may fall out when removing the back plastic.

  5. fcNftwFKqjMsCtfM
    fcNftwFKqjMsCtfM
    GOVA4dDI5KOLSqsD
    4tGf1EbowYPpJIOL

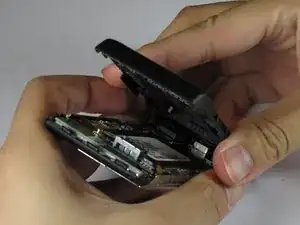

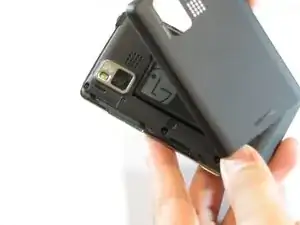

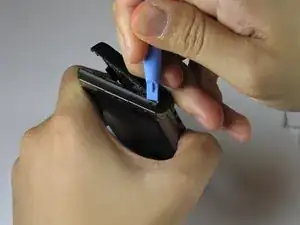

    • Pull off the back plastic panel.

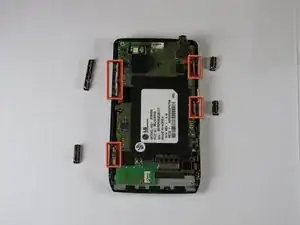

    • Remove the buttons from the edge of the frame. The buttons are [lock], [volume control], [speaker], and [camera].

  6. rKlY33FYfyHt5k2T

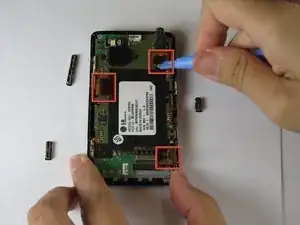

    • Disconnect the three ribbon connectors from the motherboard.

  7. 6D5Br1BEkyEbBdub
    6D5Br1BEkyEbBdub
    XSkpsGnAormvxwuZ
    3Oip3Z2DfOrX3khg

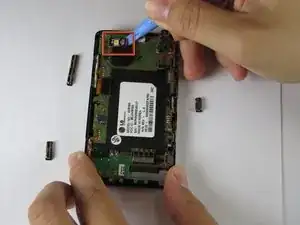

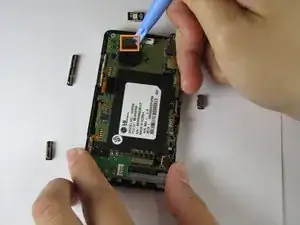

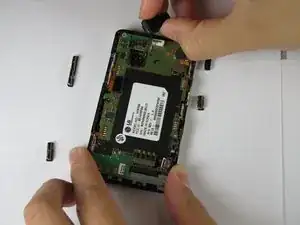

    • Remove the LED.

    • Remove the camera connector.

    • Remove the camera sensor from the logic board. Squeeze the sides of the camera sensor firmly and pull straight up.

  8. GC2hyPLM2LnkBjIq

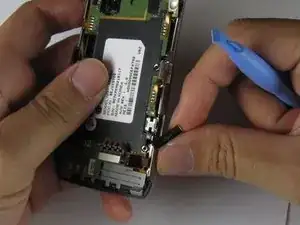

    • Open the USB port cover.

  9. yMeZYqXRAHPsZXNj
    yMeZYqXRAHPsZXNj
    WbkWTRG4RyysERVM
    eoFiFGgMgTaj2clC

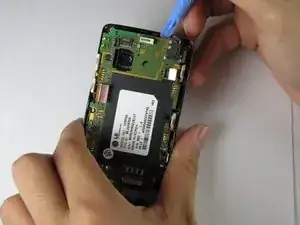

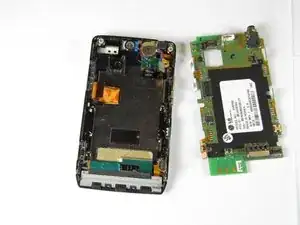

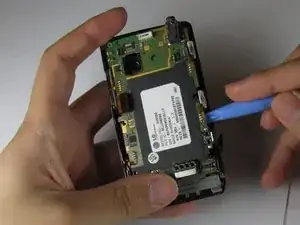

    • Use the opening tool to lift up the green logic board in all areas and remove it.

    • The logic board may require some force to remove because it is taped to the plastic frame.

    • When removing the logic board, be careful not to tear any of the ribbon cables or side buttons.

  10. DxxLePvistYxtZtO
    DxxLePvistYxtZtO
    lbNgoDMMsLlKb431
    L5GJID6ohV6wG4Od

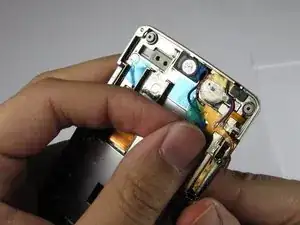

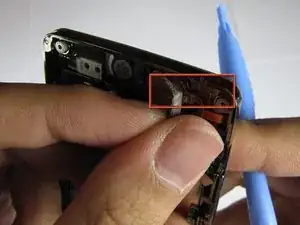

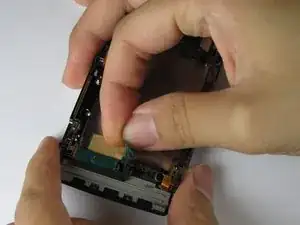

    • Peel off the gold and green tape near the bottom of the phone.

    • Peel off the blue tape covering the speaker connector.

    • Peel off the gold tape to the left of the earpiece speaker.

    • It is unnecessary to remove the blue and gold tape from the device if the speaker is not being removed.

  11. OGpAwHw5WK4VRJxV
    OGpAwHw5WK4VRJxV
    CeXOFthgIIh5vIhH

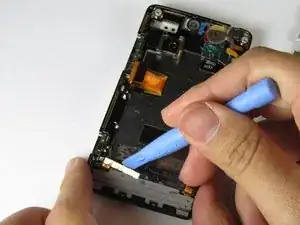

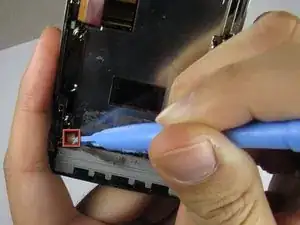

    • Lift up the orange ribbon cable in the bottom left corner of the device.

    • Peel off the small piece of gold tape underneath the orange component back.

  12. BveY2GlQCNIbsMMP
    BveY2GlQCNIbsMMP
    aQBTHtqvGKRKgYJJ

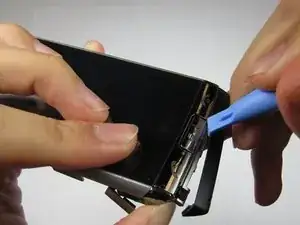

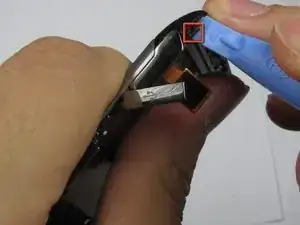

    • Undo the clips that attach the black plastic strip to the frame of the phone.

    • Pry the plastic strip away from the phone, using an opening tool, until it detaches.

  13. fmKYW2U6DLs4oqAQ
    fmKYW2U6DLs4oqAQ
    apyrnYXYSEWQqhPY

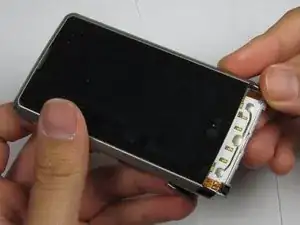

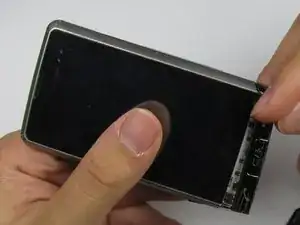

    • Pry the button panel from the device, starting where the screen and panel connect, until the panel detaches.

  14. b33QaeSqwLj4oCse
    b33QaeSqwLj4oCse
    SBG1gxvyQCcZDLKX
    • Rotate the phone upside down with the back facing you.

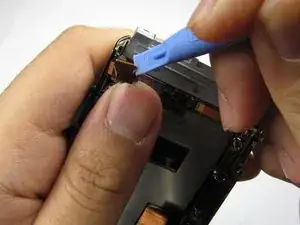

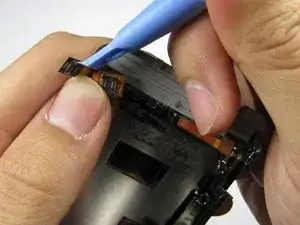

    • Using your finger to hold the bottom connector in place, use the opening tool to remove the top connector.

  15. QsHG1cW1NTW2Werp
    QsHG1cW1NTW2Werp
    eNgOAVZQOwJiigNt
    uTMGPPalcSBumwBc

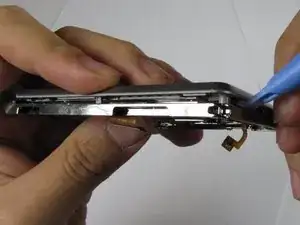

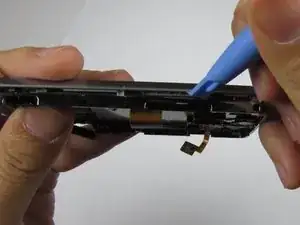

    • Using the opening tool, pry the frame from the device, starting at the open edges at the bottom of the device, and working your way around.

    • Do not detach the frame yet.

  16. yhOqE2HBDJTYbaJx
    yhOqE2HBDJTYbaJx
    CWsXBEo5FT62GqEV
    PSXBePQlSfQHhs4b

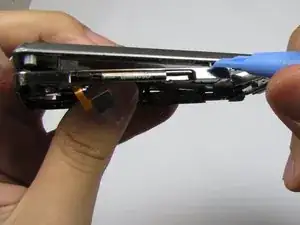

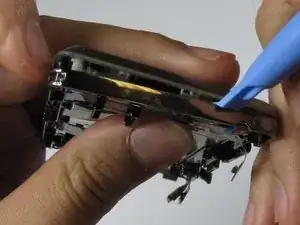

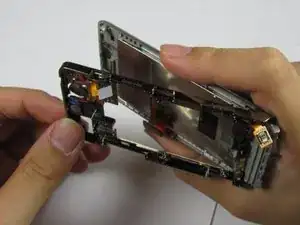

    • Gently separate the top of the frame from the back of the device, without completely detaching at the bottom, as shown in the third picture.

  17. MmNtK2tpiH6W1Z66
    MmNtK2tpiH6W1Z66
    WZAQNhL5alvmKylQ

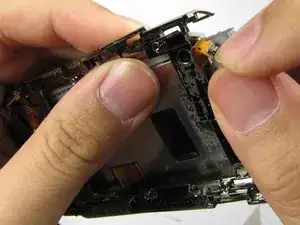

    • Remove both connectors from the frame. Fold back the L-shaped connector and slide the second connector through the hole in the metal frame.

    • Remove the frame from the plastic panel.

    • The next two steps are for earpiece removal only.

  18. DgSDAhJfcIpSCNPP
    DgSDAhJfcIpSCNPP
    R5M3EGnwIAPeZDTS

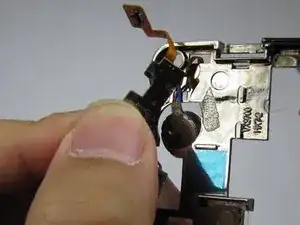

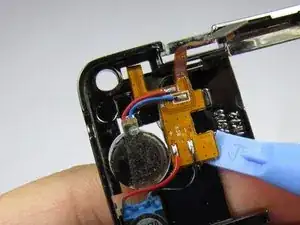

    • Using the opening tool, pry the orange connector pad that is securing the earpiece to the frame, away from the device, until it detaches.

    • It may be necessary to apply more force to remove the pad because it is taped to the frame.

  19. gjdZVZhwLXsNURix
    gjdZVZhwLXsNURix
    cRZgwp6UmCoAXr14

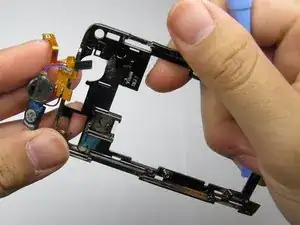

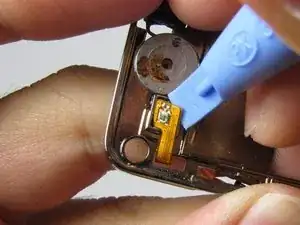

    • Pry the rest of the orange connector pad --on the opposite side of the device-- away from the frame, and carefully remove the entire earpiece.

  20. 5YaXrGVuKMUvRYWx
    5YaXrGVuKMUvRYWx
    AMdGxERlhmZOCD31

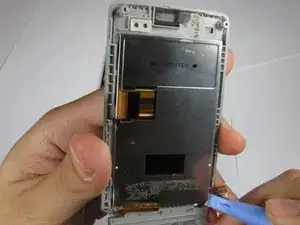

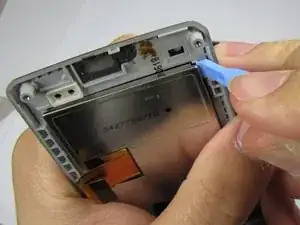

    • Lift all four corners of the screen.

    • Being too aggressive could damage the screen.

  21. g4YbLDeXwETbdyRq
    g4YbLDeXwETbdyRq
    mTsWhaxosUGBHtOn

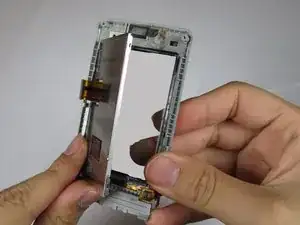

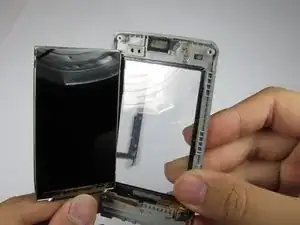

    • Remove the screen from the digitizer.

Abschluss

To re-assemble your device, follow these instructions in reverse order.
