LG EnV Touch VX11000 Motherboard Replacement

Geschrieben von: Rachel Smith
  • Kommentare: 0
LG EnV Touch VX11000 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

If your LG EnV Touch VX11000 shuts down unexpectedly or the screen is broken or malfunctioning, you may need to replace the motherboard. This guide will show you how to replace the motherboard in an LG EnV Touch VX11000.

  1. 2NClByEr61FFGovP

    • Turn the phone off.

    • Flip it over so the front screen is facing down.

  2. 3qKUqKBnw34vBKgS

    • Slide the release latch down and toward you while lifting up on the left side of the battery cover.

  3. SQHGeKcHiT6QiLgU
    SQHGeKcHiT6QiLgU
    T1XTaNdpcD2ICQPU

    • Lift the edge of the battery to remove it.

  4. RBH4tGWXQrEWGLQC
    RBH4tGWXQrEWGLQC
    vlckHNJVvEPDNUWC

    • Locate the three screw covers on the back of the phone. Using your fingernail (or a spudger, pry off screw covers.

    • Using a Phillips #000 Screwdriver, remove the 1.5mm #000 Phillips screws that were under the screw covers.

  5. sMIAAYoTGG1sLGUW

    • Locate the two inner 1.5mm #000 Phillips screws and remove them using a Phillips #000 screwdriver.

  6. XvCwCjXGRk4ResVc
    XvCwCjXGRk4ResVc
    KAQ2FKAeYCtBfssP

    • Use a plastic opening tool or your fingernail to pry off the back case.

    • The camera and volume keys will fall off.

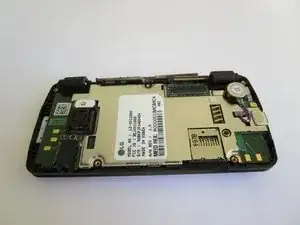

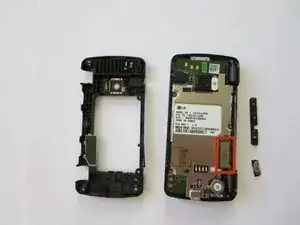

  7. 1P5r1nNRuVrmJeQR
    1P5r1nNRuVrmJeQR
    6d1IBwA3BHYYSSQj

    • Use your fingers to pull up on the tab in order to unplug it.

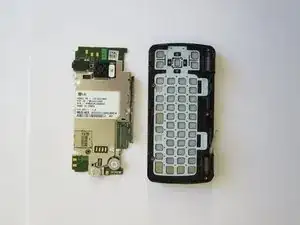

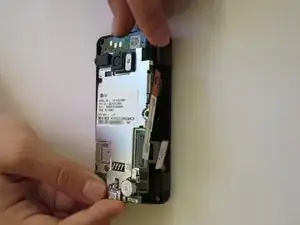

  8. Mivh14XsBTBbdwKA
    Mivh14XsBTBbdwKA
    bpHdMTkV6BSnBvua

    • Using both of your hands, gently pry out the motherboard by pulling up on both ends.

Abschluss

To reassemble your device, follow these instructions in reverse order.
