LG EnV Touch VX11000 Screen Assembly Replacement

Geschrieben von: Rachel Smith
  • Kommentare: 0
LG EnV Touch VX11000 Screen Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 Minuten

Einleitung

If the screen on your LG EnV Touch VX11000 is cracked, scratched, or not displaying properly, you may need to replace it. This guide will show you how to replace the screen assembly on an LG EnV Touch VX11000.

  1. 2NClByEr61FFGovP

    • Turn the phone off.

    • Flip it over so the front screen is facing down.

  2. 3qKUqKBnw34vBKgS

    • Slide the release latch down and toward you while lifting up on the left side of the battery cover.

  3. SQHGeKcHiT6QiLgU
    SQHGeKcHiT6QiLgU
    T1XTaNdpcD2ICQPU

    • Lift the edge of the battery to remove it.

  4. RBH4tGWXQrEWGLQC
    RBH4tGWXQrEWGLQC
    vlckHNJVvEPDNUWC

    • Locate the three screw covers on the back of the phone. Using your fingernail (or a spudger, pry off screw covers.

    • Using a Phillips #000 Screwdriver, remove the 1.5mm #000 Phillips screws that were under the screw covers.

  5. sMIAAYoTGG1sLGUW

    • Locate the two inner 1.5mm #000 Phillips screws and remove them using a Phillips #000 screwdriver.

  6. XvCwCjXGRk4ResVc
    XvCwCjXGRk4ResVc
    KAQ2FKAeYCtBfssP

    • Use a plastic opening tool or your fingernail to pry off the back case.

    • The camera and volume keys will fall off.

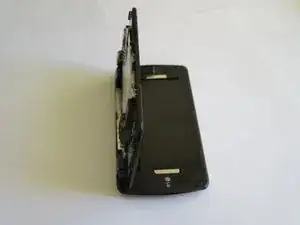

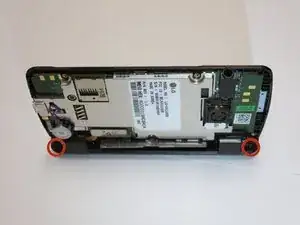

  7. vmMLqYBZxSYwg1Rl
    vmMLqYBZxSYwg1Rl
    dyvKZBkHEKQtcWuB
    2IUwF5bPpBoHxtiN

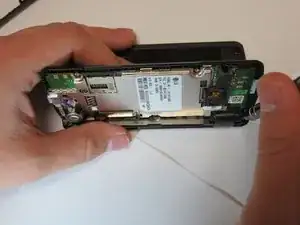

    • Open the phone at a 90 degree angle. This needs to be done in order to reach the screws.

    • Locate the two 1.5mm #000 Phillips screws on the outside of each hinge.

    • Remove the two 1.5mm #000 Phillips screws with a Phillips #000 screwdriver.

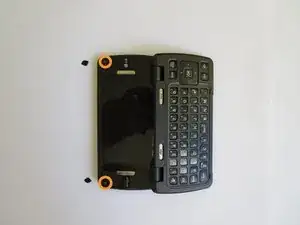

  8. HXyjKNomTkXFdIgy
    HXyjKNomTkXFdIgy
    RhvOACvMTVmCMZCJ

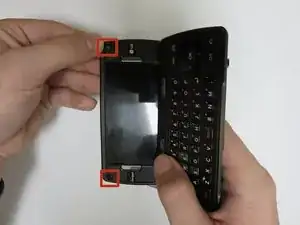

    • Pry off the two screw covers on the inside screen, using a spudger or your fingernail.

    • Remove the two 1.5mm #000 Phillips screws that were under the screw covers using the Phillips #000 screwdriver.

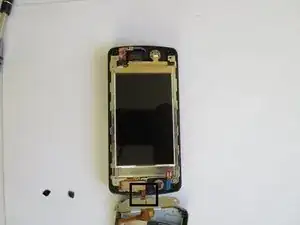

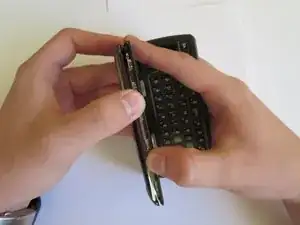

  9. 6PTYleGbFSCgRTOs
    6PTYleGbFSCgRTOs
    FJQGYKPZhdvyMSJx

    • Pry off the front frame using your fingernail.

    • The frame should still be connected to the rest of the phone by the orange tab.

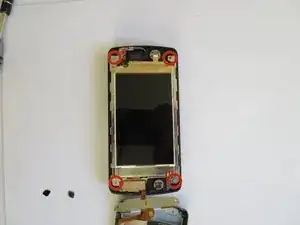

  10. J3sL5bJuOD2xuLSC

    • Remove the four 1.5mm #000 Phillips screws at each of the corners of the phone, using the Phillips #000 screwdriver.

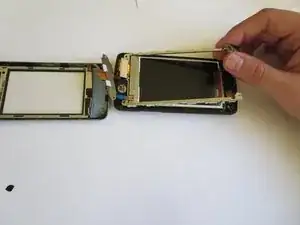

  11. udxlotDrQduEdNNV
    udxlotDrQduEdNNV
    q6jyXnpvQADhjvTh
    oWFr3LSE2RASdGyL

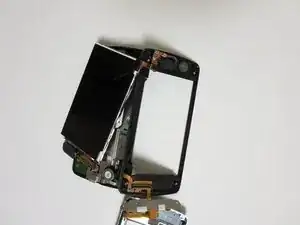

    • Peel off the gold tape.

    • Gently pry up the metal frame with your fingers so that the screen can be removed.

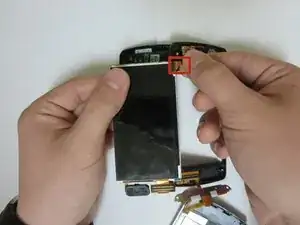

  12. r6SDJNvNOjSyvMlG
    r6SDJNvNOjSyvMlG
    DnxA1uN6pDTJaIeE

    • Unplug the connector from the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
