LG EnV Touch VX11000 Volume and Camera Buttons Replacement

Geschrieben von: Rachel Smith
  • Kommentare: 0
LG EnV Touch VX11000 Volume and Camera Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If the camera button or the volume buttons on your LG EnV Touch VX11000 are jammed, stuck, or unresponsive, you may need to replace them. This guide will show you how to replace the camera and volume buttons on an LG EnV Touch VX11000.

  1. 2NClByEr61FFGovP

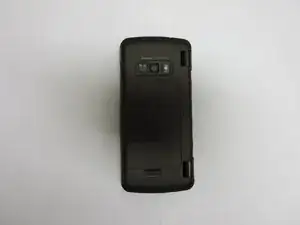

    • Turn the phone off.

    • Flip it over so the front screen is facing down.

  2. 3qKUqKBnw34vBKgS

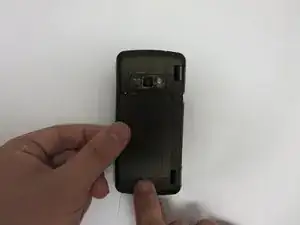

    • Slide the release latch down and toward you while lifting up on the left side of the battery cover.

  3. SQHGeKcHiT6QiLgU
    SQHGeKcHiT6QiLgU
    T1XTaNdpcD2ICQPU

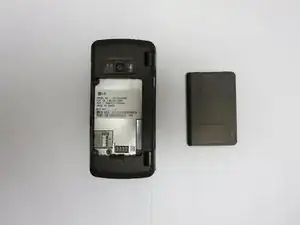

    • Lift the edge of the battery to remove it.

  4. RBH4tGWXQrEWGLQC
    RBH4tGWXQrEWGLQC
    vlckHNJVvEPDNUWC

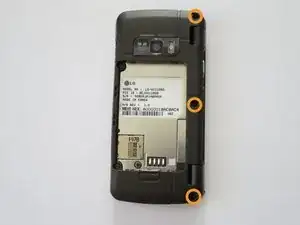

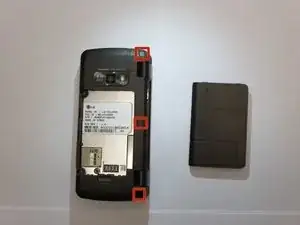

    • Locate the three screw covers on the back of the phone. Using your fingernail (or a spudger, pry off screw covers.

    • Using a Phillips #000 Screwdriver, remove the 1.5mm #000 Phillips screws that were under the screw covers.

  5. sMIAAYoTGG1sLGUW

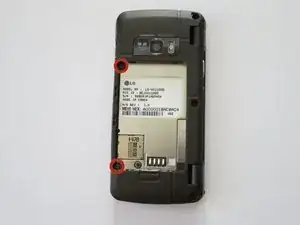

    • Locate the two inner 1.5mm #000 Phillips screws and remove them using a Phillips #000 screwdriver.

  6. XvCwCjXGRk4ResVc
    XvCwCjXGRk4ResVc
    KAQ2FKAeYCtBfssP

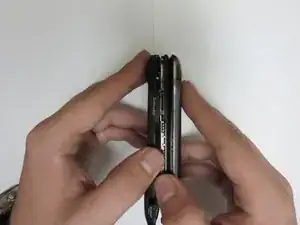

    • Use a plastic opening tool or your fingernail to pry off the back case.

    • The camera and volume keys will fall off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
