Einleitung
If you need to replace the audio jack in your LG Encore GT550, follow this guide.
-
-

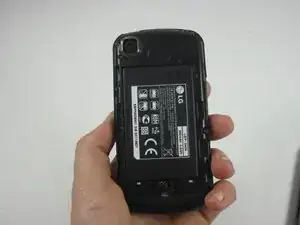

Turn the device over so the backside is facing up.
-

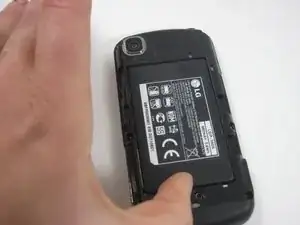

Use your fingers or an opening tool to remove the back cover in order to expose the battery.
-
-
-

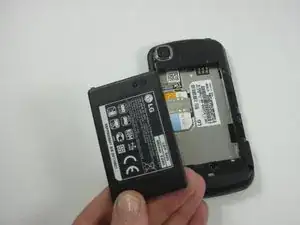

Use your fingers or a spudger to remove the battery. Lift it from the side opposite of the camera.
-
-
-

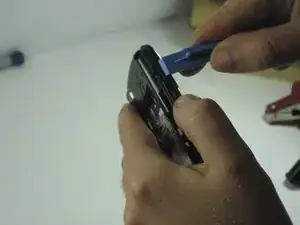

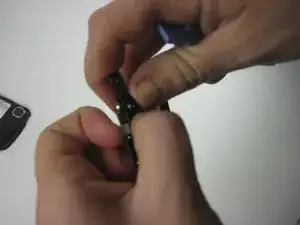

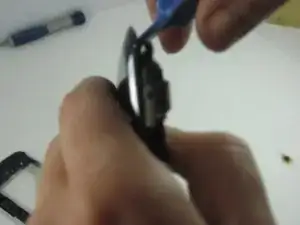

Place the opening tool in the seam of the device and pry around the perimeter to separate the top case from the bottom case.
-
-
-

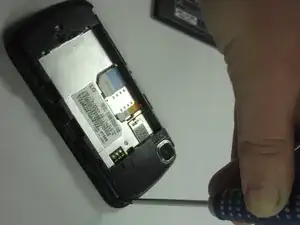

Place the opening tool on the top on the device between the phone casing and motherboard.
-

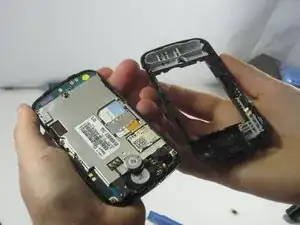

Separate the screen and the motherboard.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
