If your speaker volume has been very low, or you have noticed it has degraded use this guide to replace the LG Fortune speaker

  1. ZAQbWS4hoR4Ckyqr
    ZAQbWS4hoR4Ckyqr
    dyEZZMyw2LgkJcMm
    • Use the slit on the bottom right side of the phone to open the back cover of your phone.

    • It will be the bottom left of the phone if looking at it from the back.

    • Slowly pry the back cover off the phone starting from the bottom up to the top.

  2. Sj4dLLhg4VRJPdJO
    Sj4dLLhg4VRJPdJO
    YhSBLqAUwv2m5XRs
    • Use the slot in the middle of the bottom edge of the battery to pry it up and out of the case.

  3. tIR61r5EHGwB6hjT
    tIR61r5EHGwB6hjT
    RtbAi1cZhcT2UPyO

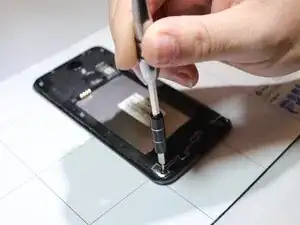

    • Use your PH000 screwdriver to remove the ten 1.4mm x 4mm screws.

  4. r2fQZuJBXfaEu4PP

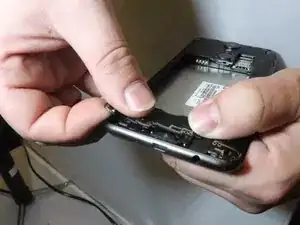

    • Remove the paneling on the bottom left side of the device.

    • This is done by grabbing it on the left side where it should be a little loose and easily come off.

  5. uGLV4TS2eFTHyCP1
    uGLV4TS2eFTHyCP1
    yIAkaEFZpkCCJhbp

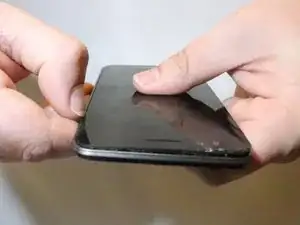

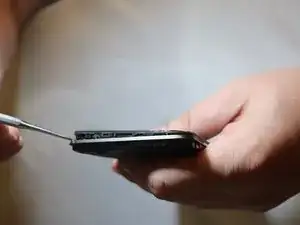

    • Use either a spudger or your finger to separate the back of the device from the screen.

    • Using a metal spudger as shown in the photos has the potential to damage your device.

    • You will wedge your item on the upper right hand corner of the device to separate them. The speaker will be on the side of the device not connected to the screen.

  6. QUhFXEFFgZwVxBu5
    QUhFXEFFgZwVxBu5
    TBKnZKXGShv1xQjp
    pqe5GLpMf6dcKxGe

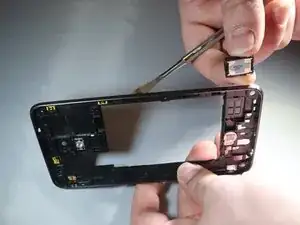

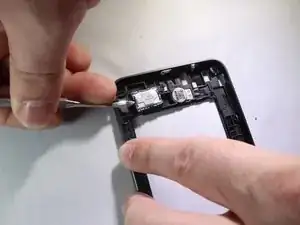

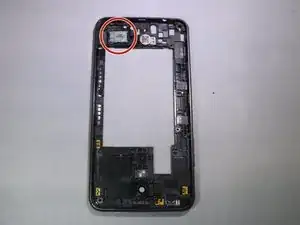

    • Using the metal spudger lift up and remove the speaker along with the magnetic tape it comes with.

Abschluss

To reassemble your device, follow these instructions in reverse order.
