Einleitung
This guide shows the procedure for replacing the speaker on an LG G Pad 7.0 as well as all materials needed. Be sure to clean your work space to avoid any unnecessary scratches on the screen as you work.
Werkzeuge
Ersatzteile
-
-

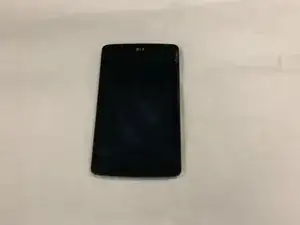

Power down the device.
-

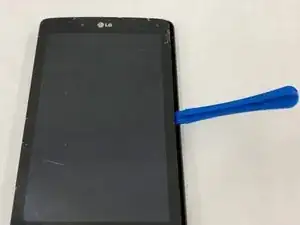

Insert iFixit screen removal tool along the edge of the screen.
-
Carefully work the tool around the edge of the screen avoiding the front camera and volume buttons.
-
Once the screen is free, remove it from the back cover.
-
-
-

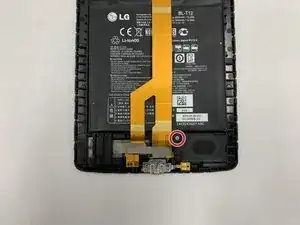

Using a Phillips #000 head screwdriver, remove the 3mm Phillips head screw holding down the speaker.
-
The speaker is now free and can be replaced.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
