LG G Pad 8.3 4G Back Camera Replacement

Geschrieben von: Charlie Castorena
  • Kommentare: 0
LG G Pad 8.3 4G Back Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

2 - 3 Minuten

Einleitung

To replace your back camera, you can use this one simple replacement guide.

  1. OIGAVnaNdIkfiXgj

    • With the screen faced up, insert the metal spudger into the crevice so that it is sticking out between the side panel and the screen.

    • Be gentle when popping the panel off.

  2. mnThqgDwXnSmy6QN
    mnThqgDwXnSmy6QN
    N61JHAGxx5PKIFW6
    YQBbILgrPlje1grb

    • Take the spudger and slide it around the perimeter of the device.

    • Pull gently on the edges to get the panel to pop up.

    • If the panel does not budge, be aware that there is adhesive on the back of the battery holding the back shut. Make sure to just move around the perimeter of the back panel until the panel is able to lift forward.

  3. 1oRAtVmURFyFw52f
    1oRAtVmURFyFw52f
    tjDTlQKAekRHDEAU

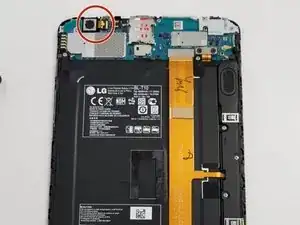

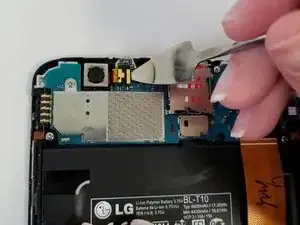

    • Place metal spudger under edge of the IT1430 and lift vertically.

    • The IT1430 looks like a small cube with a yellow bar hanging off the side.

  4. JNevEIJFjOPOO2UM
    JNevEIJFjOPOO2UM
    JUBquEep1Npk5UMw

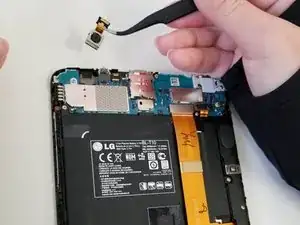

    • Insert spudger to the right edge of the gold band and gently pry it up to disconnect the chip.

    • Repeat step with top and bottom sides.

    • Remove with tweezers.

    • Be careful when inserting the spudger behind the gold band because it is possible to tear it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
