LG G Pad 8.3 4G Battery Replacement

Geschrieben von: Charlie Castorena
  • Kommentare: 1
LG G Pad 8.3 4G Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

16

Zeitaufwand

8 - 10 Minuten

Einleitung

Werkzeuge

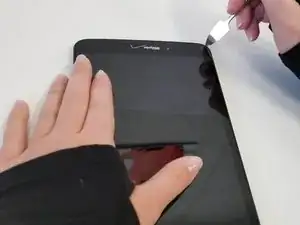

  1. OIGAVnaNdIkfiXgj

    • With the screen faced up, insert the metal spudger into the crevice so that it is sticking out between the side panel and the screen.

    • Be gentle when popping the panel off.

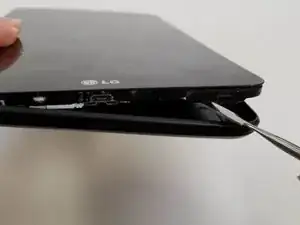

  2. mnThqgDwXnSmy6QN
    mnThqgDwXnSmy6QN
    N61JHAGxx5PKIFW6
    YQBbILgrPlje1grb

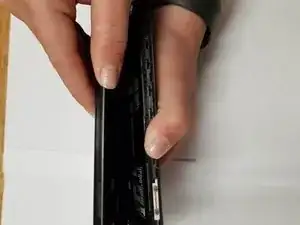

    • Take the spudger and slide it around the perimeter of the device.

    • Pull gently on the edges to get the panel to pop up.

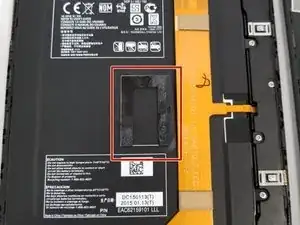

    • If the panel does not budge, be aware that there is adhesive on the back of the battery holding the back shut. Make sure to just move around the perimeter of the back panel until the panel is able to lift forward.

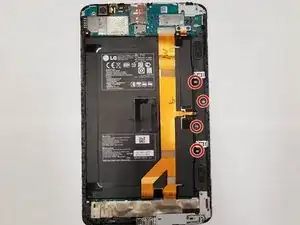

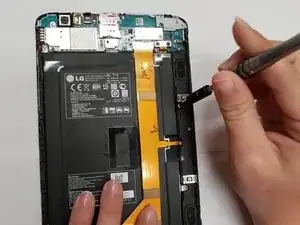

  3. dbtaUP4CgSNmoDsA
    dbtaUP4CgSNmoDsA
    ctshMC2iVfUP1IkB

    • Remove the 4 1.5 mm screws holding the speakers in place.

  4. JocBQWFvCrDaRVWS
    JocBQWFvCrDaRVWS
    1KKgB3YjloQpi5MA
    Be4ECNDrOMPLcwSh

    • Put the spudger underneath the gold cap of the cable and lift to disconnect from device.

    • This cable can be damaged easily.

  5. DTZYePpcxAjSwOCq

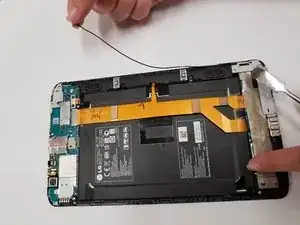

    • Pull the cable back and out of the way of the speaker.

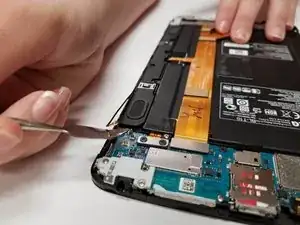

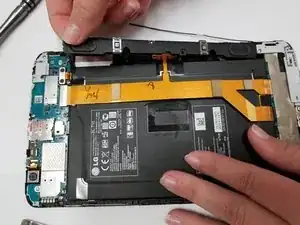

  6. bFyKCVJF1MLwJXw1
    bFyKCVJF1MLwJXw1
    U2T1QtSFwbdMXoI4

    • Place the spudger in between the speaker and the device to pop the speaker out of place.

    • Pull the speaker out of the device.

  7. yibALqafN3OG6Tfp
    yibALqafN3OG6Tfp
    YYqqlwxndgQbBBQL

    • Remove the two screws on the white panel on the bottom right side.

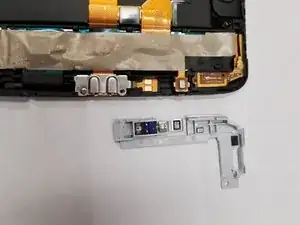

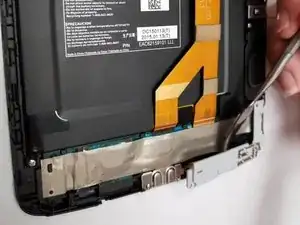

  8. 3tHPfKtv5IUoIORD
    3tHPfKtv5IUoIORD
    PyaR6lB2sMlW2i3O

    • Remove the white panel.

  9. NAOMG1MM5HhwAFJM

    • Remove the vibrator from the underside of the white panel.

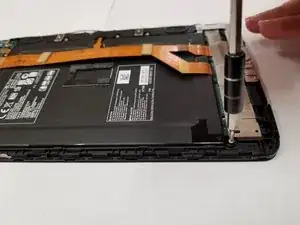

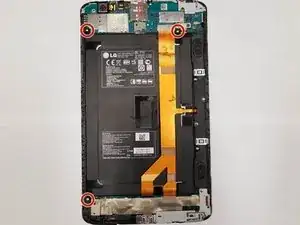

  10. GlK1auomPQZDF1MV
    GlK1auomPQZDF1MV
    pU4A4uIZiACLJDH1

    • Remove the 3 silver 1.5 mm screws that remain.

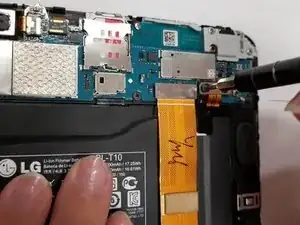

  11. HtxYuFCtucWXOQPD
    HtxYuFCtucWXOQPD
    rsqGUHsAujGvM3oS

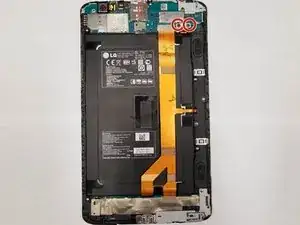

    • Remove the 2 black 1.5 mm screws.

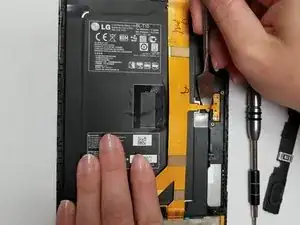

  12. NvofVbUJO6tJw6OV
    NvofVbUJO6tJw6OV
    FO112b6hWEV1FCJ2

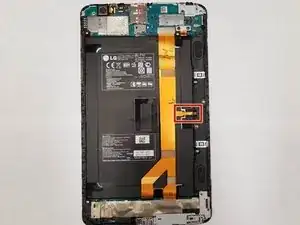

    • Insert metal spudger under the side of the gold strip and pull.

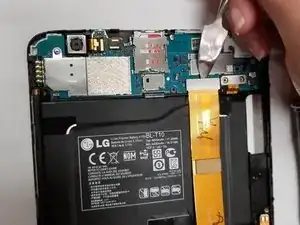

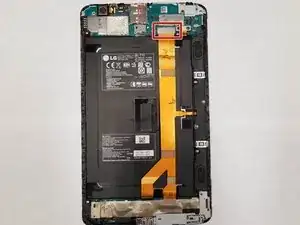

  13. FrlIitcOsLnfTrrv
    FrlIitcOsLnfTrrv
    GdiQBSbbfNNrHbhB

    • Place spudger under the top of the gold bar and gently pry up.

  14. uaeluFiSWPnA55rJ

    • Pull on top of the silver block until gold bar lifts.

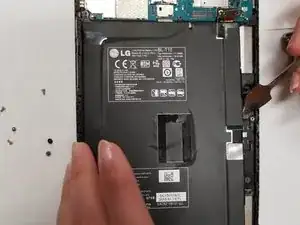

  15. ZHws2DWSNi6yaHN5

    • Place spudger under the battery and run it around the edge to loosen it.

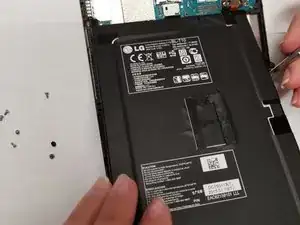

  16. hQCQJsEwlrGOUd3F

    • Pull the battery out.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Charlie Castorena

Mitglied seit: 18/09/18

417 Reputation

Ein Kommentar

I have followed your guide (LG G Pad 8.3 4G Battery Replacement) but what see when I pry off the screen is not what is on your pic of step 2.

It appears that I have to pry off the back panel to actually see the battery, the speakers and the gold cable.

How can I pry off the back panel?

Thanks,

Ed

Ed Miller -
