LG G Pad 8.3 Speaker Replacement

Geschrieben von: Mario Salguero
  • Kommentare: 1
LG G Pad 8.3 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 25 Minuten

Einleitung

If your LG G Pad 8.3 speaker isn't working, it may be time to replace it. This guide will show you how to replace the speaker.

  1. sOJUcVTNoWWtVGDR
    sOJUcVTNoWWtVGDR
    eM32UNGNWqgmFWva

    • With the tablet face down, pull the SD card slot cover out.

    • Using a Phillips #000 screwdriver, remove the 3mm screw located in the SD card slot.

  2. qDRkREMwYUAkwGQX
    qDRkREMwYUAkwGQX
    NT4FQU2PqhmRBfGS
    RcAxS1nRODfFM5bu

    • Insert a plastic opening tool in the small crevasse between the screen and the back panel.

    • Pry the screen away from the back panel.

    • Repeat this on each edge of the device.

    • We found it helpful to leave multiple plastic opening tools wedged in the crevasse to prevent it from closing.

    • This requires heavy force. The back of the device is attached with an adhesive. If the back panel is too hard to remove, use the iOpener.

  3. ko5XAEW4Ivc3xRJN
    ko5XAEW4Ivc3xRJN
    QkkrZPVEyrauxxOt

    • After using the plastic opening tools, pry the device open with your hands.

    • Remove the back panel from the screen.

  4. spIW5UxFGfHeCAxF
    spIW5UxFGfHeCAxF
    dJySR5RjGiMR3plP

    • Remove the four 3 mm Phillips #000 screws that are attached to the speaker.

    • These screws are very small so make sure to keep track of them. You can use iFixit's Pro Magnetic Project Mat to help.

    On the VK810 Model you have to watch out for the antenna wire that runs along and is attached to the speaker by the means of a metal wire clip.

    What I would recommend is detaching the antenna wire from the top of the device then gently remove it from the clip.

    Then remove the speaker.

    On a side note does anyone know where to buy the little ant wire that runs across the speaker?

    Kyle -

  5. BGWfCY3cmO5hbACX

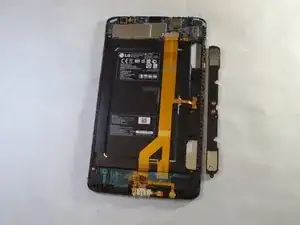

    • Use your fingers to remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
