LG G Pad X 8.0 Motherboard Replacement

Geschrieben von: [deleted]
  • Kommentare: 3
LG G Pad X 8.0 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

The motherboard replacement is more time extensive than a simple battery swap but should still be manageable for any novice. Keep track of your screws since they are tiny and easy to lose.

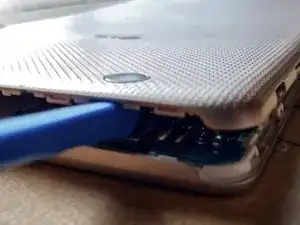

  1. 2KvRBgmpdrXnBPTq

    • Power off the device before starting battery replacement.

    • Remove SD card and SIM Card.

    • With the opening tool, gently pry the back plate away from the main board. The corners are the easiest spots to start at.

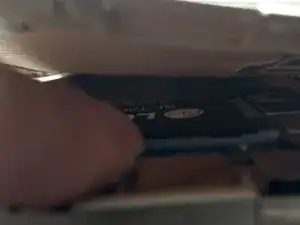

  2. RLQZ2PdbkcroKSJV
    RLQZ2PdbkcroKSJV
    e6cGLaxZUZJrTiKu

    • Gently pull the back cover away from the adhesive on the battery.

    • It may be possible to use a blow dryer on low heat but I'd advise against it unless absolutely necessary.

  3. Yax6RVDDUQL6Paca
    Yax6RVDDUQL6Paca

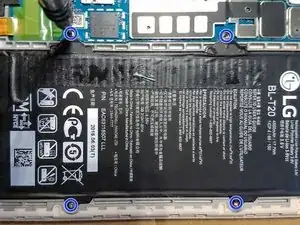

    2b3KFROPFb2HMRDF

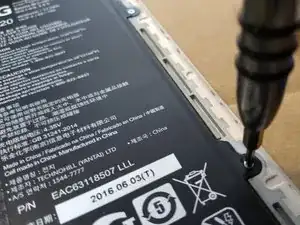

    BoQRlLuytRGMMfmI

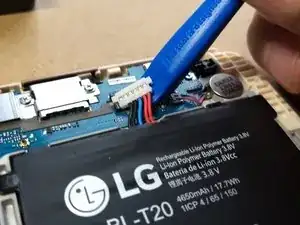

    • Slowly and gently lift the power cable upwards.

    • Unscrew the 4 screws keeping the battery in place, set aside.

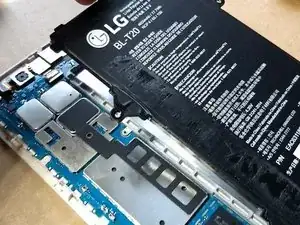

  4. Q2gLrZjGXVVNVheD

    • Remove the battery by pulling up gently.

  5. 4aUdI5Me4lK6pXrI
    4aUdI5Me4lK6pXrI
    hLk3aWOLYRPqNL4C

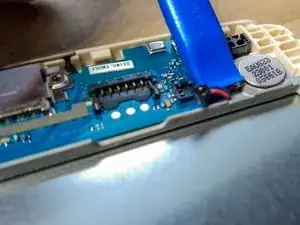

    rEPgFLfENMwIerIE

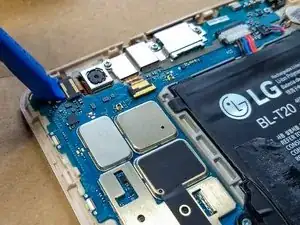

    • Pry the connector for the camera up.

    • Pry the connector for the USB module up.

    • Pry the cable connecting the metal circle.

    What is the metal circle??? Ive looked high and low AMD cannot find the answer! Email me at haileyalberger@gmail.com I would be so grateful :)

    Hailey Alberger -

  6. iBZnRJXInUUoKstM
    iBZnRJXInUUoKstM

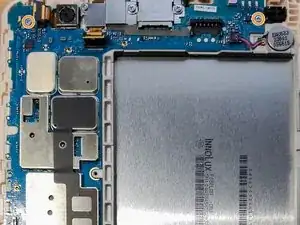

    wMEyBFywPjrO5PlY
    s6JmGEoI4pGJxJHE

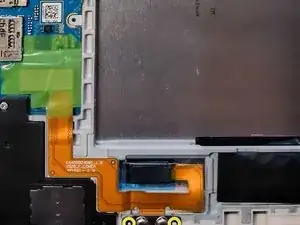

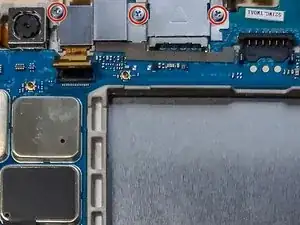

    • Unscrew the 3 screws holding the USB module down.

    • Unscrew the 2 screws keeping the motherboard in place.

    • Finally, the two screws for the micro USB port.

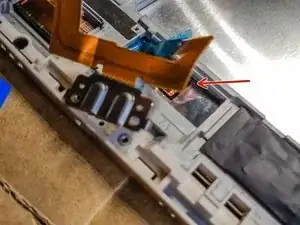

  7. hOMe42SDnWVjRXWs

    • Gently lift up the display connector.

    • Be careful, too much pressure can cause the digitizer/screen to crack as it is right below the metal.

  8. mJGGsMtFiAUZTdEh

    • Remove the motherboard by pulling it straight up and away from the tablet body.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

[deleted]

Mitglied seit: 18/05/17

1116 Reputation

2 Kommentare

Would my motherboard to my pad be no good due to water damage it’s been 3 months still won’t turn on. The little sticker is pink still but my battery smells burnt. Could I take out the mother and use some air dust ?

Joe -

You may need to replace the battery as it sounds like it shorted out. A burnt smell more than likely means the battery is damaged.

Have you tried replacing the battery yet?

[deleted] -
