LG G Stylo Front Camera Replacement

Geschrieben von: Douglas Schmidt
  • Kommentare: 4
LG G Stylo Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

If your front camera has become damaged any way such as broken lens or water damage, this guide will show you how to replace it.

  1. YvnLymmGQkQOcv2h
    YvnLymmGQkQOcv2h
    iY3DDaTJNOCYUUdt

    • Make sure that you power off the phone before beginning.

    • Remove the back cover by placing the plastic opening tool on the bottom left side of the device and gently prying up.

    • There is a small slit that fits the plastic opening tool perfectly on the left side.

  2. hkeVttKEhLTBUuXH
    hkeVttKEhLTBUuXH
    L3qytOTsKjOXwBo4

    • Insert the plastic opening tool into the indent at the bottom of the battery and lift up. Fully remove the battery with your fingers.

    My phone is showing USB when charging instead of AC and when removing the charger it's show discharging instead of Not charging.... Don't know why it is not working properly....

    George japhet -

    I need help urgently please

    George japhet -

  3. ygBJStVMYaEeFlQQ
    ygBJStVMYaEeFlQQ
    SjTRXOTa4ZHWK2rq

    • Carefully use the Phillips #00 screwdriver to remove the eleven 3.9mm visible screws found on the back. The screws to be removed are marked with the given indicators.

  4. i1BYuvCpbMqHTT5C
    i1BYuvCpbMqHTT5C
    tZR2AvVEINYSaZpQ
    5N2JoRCfRaDSdoSQ

    • When you have finished removing all of the screws, place the plastic opening tool in the groove at the bottom left corner of the motherboard cover and lift up.

    • Make sure to remove the SIM card before you remove the motherboard cover. You can get the cover off without doing this, but the SIM card will be stuck underneath the cover once you put it back together.

    • This part could be more difficult if you have never removed the motherboard cover. If difficulty arises, pry the plastic opening tool into each groove along the edge of the motherboard cover until it releases.

    • Once a clip is released, you can detach the motherboard cover with your fingers and set aside.

  5. mbCTISj5NRbyHs3K
    mbCTISj5NRbyHs3K
    LkD5xNnEH3yEbUHO
    CDaJQZqorWPuuBVy

    • Carefully place the plastic opening tool under the ribbons where the cables are connecting and lift up to detach the cables.

    • Keep in mind to be careful with the ribbons, because they are small components and important for the device's functionality.

    • The third photo attached depicts what the ribbons look like when they are successfully detached.

  6. DsM4KRXR3u2APTlq
    DsM4KRXR3u2APTlq
    FBqnyeqIZC6wiLOM

    • Fully remove the motherboard by prying upward with the plastic opening tool.

    • This step will be quite simple if all the ribbons have been detached correctly.

    These pictures sb. numbered

    superbike-shaun -

    The pictures shown need to be#”d and also what part # do we order???

    superbike-shaun -

  7. QhQIuuFvFtWLNXTh
    QhQIuuFvFtWLNXTh
    Sq3wxOM46ertDOgE
    rfulPaHtvudVsVwx

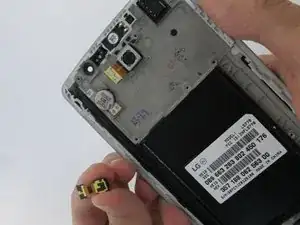

    • Indicated on the back of the phone is the front camera. To remove the front camera, detach the ribbon cable located on the back of the phone at the top-left.

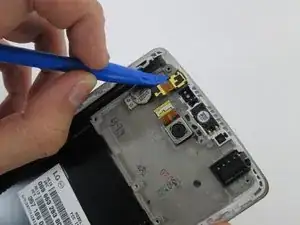

    • Gently lift up the ribbon with the plastic opening tool. Remove the front camera and replace accordingly.

    • Be careful when removing to avoid harming the device and tearing the attached ribbon.

Abschluss

To reassemble your device, follow these instructions in reverse order.
