LG G Stylo Speaker Replacement

Geschrieben von: Kimberly Young
  • Kommentare: 2
LG G Stylo Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

If you are having problems with the audio performance on your phone and you have determined that the speaker is the issue, this guide will walk you through on how to change the speaker part.

  1. YvnLymmGQkQOcv2h
    YvnLymmGQkQOcv2h
    iY3DDaTJNOCYUUdt

    • Make sure that you power off the phone before beginning.

    • Remove the back cover by placing the plastic opening tool on the bottom left side of the device and gently prying up.

    • There is a small slit that fits the plastic opening tool perfectly on the left side.

  2. hkeVttKEhLTBUuXH
    hkeVttKEhLTBUuXH
    L3qytOTsKjOXwBo4

    • Insert the plastic opening tool into the indent at the bottom of the battery and lift up. Fully remove the battery with your fingers.

    My phone is showing USB when charging instead of AC and when removing the charger it's show discharging instead of Not charging.... Don't know why it is not working properly....

    George japhet -

    I need help urgently please

    George japhet -

  3. JcnHDXlWbiRcYohD
    JcnHDXlWbiRcYohD
    H1oExdiB2IkkysqC

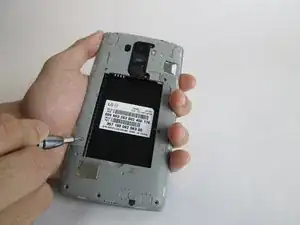

    • Carefully use the 3.9mm Phillips #00 screwdriver to remove the eleven visible screws found on the back. The screws to be removed are marked with the given indicators.

  4. gRodwriZ22CjuUBc
    gRodwriZ22CjuUBc
    Y2PeLZrvfEIIQTqQ

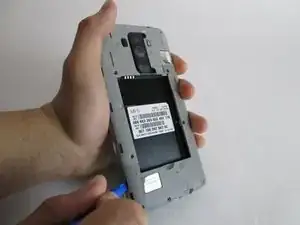

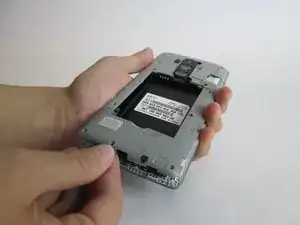

    • When you have finished removing all of the screws, place the plastic opening tool in the groove at the bottom left corner of the motherboard cover and lift up.

    • This part could be more difficult if you have never removed the motherboard cover. If difficulty arises, pry the plastic opening tool into each groove along the edge of the motherboard cover until it releases.

    • Once a clip is released, you can detach the motherboard cover with your fingers and set aside.

  5. WgTkynUSBIekGXoG
    WgTkynUSBIekGXoG
    Th1U6XThxJ1dvZsX
    OBlsMJQsqAR2LwHd

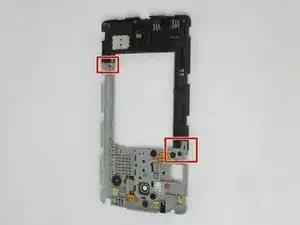

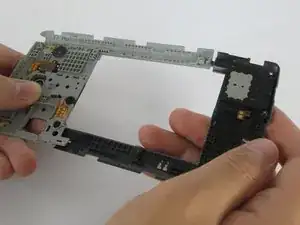

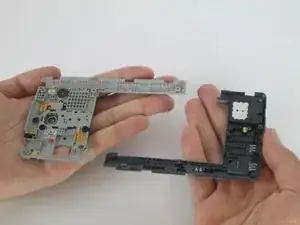

    • Once you have the plastic back cover exposed you can detach the speaker

    • Indicated on the back panel is where you will use your plastic prying tool to remove the top part from the speaker.

    • The bottom part of the plastic panel contains the speaker which should be placed all as one part.

Abschluss

To reassemble your device, follow these instructions in reverse order.
