LG G Vista Charging Dock Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

7 - 10 Minuten

Einleitung

This guide will teach you how to replace the charging dock in your LG G Vista. In this guide you will need tweezers, and a spudger.

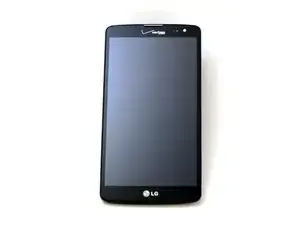

  1. Nm2wNA1jiZOOQoPN

    • Make sure the device is powered off.

  2. HS1yYLRiKje4Ph4F

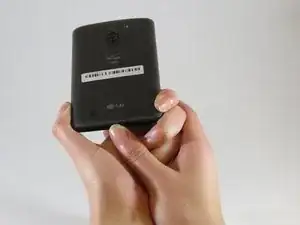

    • Remove the back cover by gently prying open the case of the device from the charging port.

  3. qibO3dojvFbFDeZ5

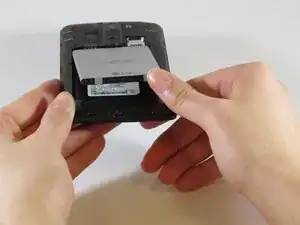

    • Lift the battery out of its place by prying up from the small notch at the base of the battery.

    Thanks! Removing the battery and replacing it fixed my daughter’s phone. Easy, one-minute solution.

    Christi Davis -

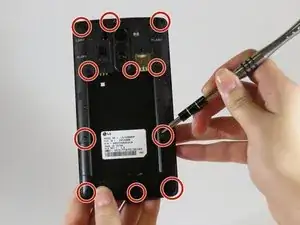

  4. mgRetVOi5Cuny4K5

    • Using a Phillips #000 screwdriver, remove the eleven 3.0 mm screws around the perimeter of the phone.

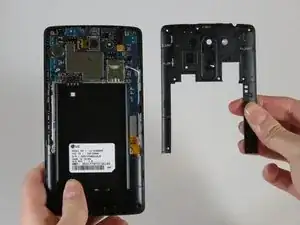

  5. 6LCWSQtXpTXWHDGu

    • Use a plastic spudger, or finger nail, to lift up the hard shell on the top of the phone.

  6. J1ETCxDZmvvyBQGr
    J1ETCxDZmvvyBQGr

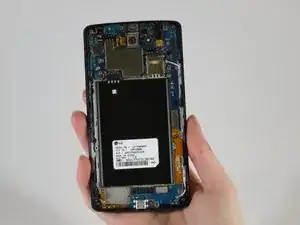

    Cwi6QSmweXTuenW1

    • Use a Phillips #000 screwdriver to remove the five 3.0 mm screws.

    • Remove the bottom hard shell from the device.

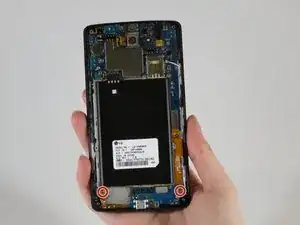

  7. BMvSgfEtgv6SqSXH
    BMvSgfEtgv6SqSXH

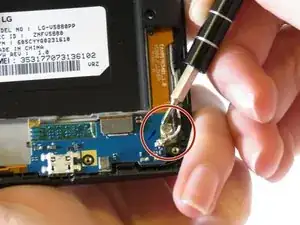

    XbWIuPH3wypgkCOF

    • Using a Phillips #000 screwdriver, remove the two screws from the device.

  8. HxNBEtrkGZilLWLd

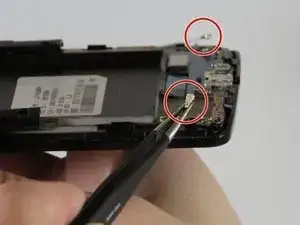

    • Using a pair of tweezers, lift up the two antennas surrounding the battery.

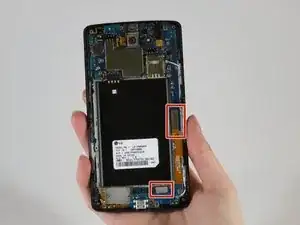

  9. KeBpsMr42iaNaRbb

    • Disconnect the two connectors on the right side of the charging port.

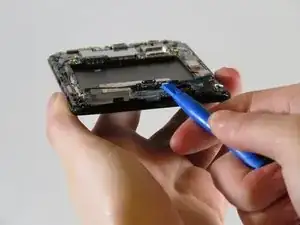

  10. MoZT2KswIWrITrkF

    • Lift up the charging port with the plastic opening tool.

    • Remove the charging port from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
