LG G Vista Motherboard Replacement

Geschrieben von: Key Baker
  • Kommentare: 1
LG G Vista Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

7 - 10 Minuten

Einleitung

This guide will walk you through with replacing the motherboard of you LG G Vista. You will need tweezers, a Phillips screwdriver #000, and a small plastic spudger, or your thumb nail.

  1. Nm2wNA1jiZOOQoPN

    • Make sure the device is powered off.

  2. HS1yYLRiKje4Ph4F

    • Remove the back cover by gently prying open the case of the device from the charging port.

  3. qibO3dojvFbFDeZ5

    • Lift the battery out of its place by prying up from the small notch at the base of the battery.

    Thanks! Removing the battery and replacing it fixed my daughter’s phone. Easy, one-minute solution.

    Christi Davis -

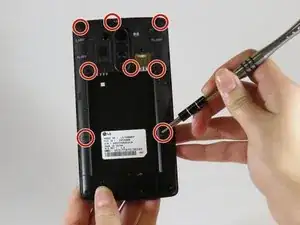

  4. dYROSZIuPeHJJhhC

    • Remove the eight 3.0 mm screws using the Phillips #000 screwdriver.

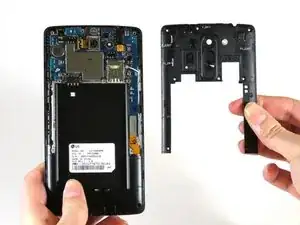

  5. YTYHL6tB1sQWBMRq

    • Remove the hard shell covering the motherboard.

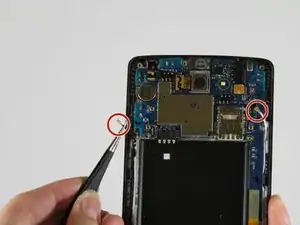

  6. YMAC6sujKmxTv46L

    • Use a pair of tweezers to lift up the white antenna wire. On the other side of the logic board, do the same for the black antenna wire.

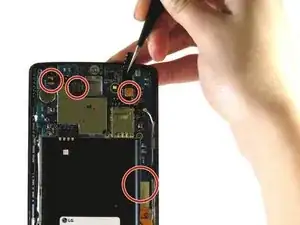

  7. LeWtyD1L2lXoj6Hv
    LeWtyD1L2lXoj6Hv

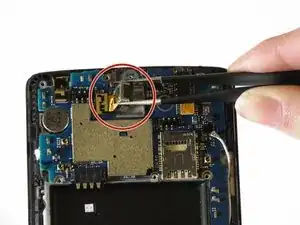

    r23ak5wo6PtLd1Py

    • Use the tweezers to remove the four connectors as well as the back camera.

    • Be careful not to directly touch the camera lenses.

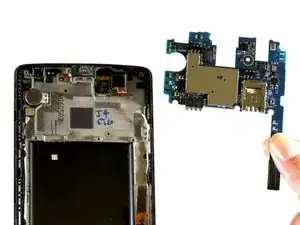

  8. T12QHkFLMYWw5uPr

    • Lift up and remove the motherboard from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
