This guide will show you how to replace a damaged digitizer and LCD on your LG G3.

This part is only the fused display and digitizer and does not contain the support frame. If your replacement part includes the frame, follow this shorter, less complicated screen replacement guide.

  1. VM2hAhiPGBIMGWqR
    VM2hAhiPGBIMGWqR
    TotZaNFmWXGZc52U
    • Power off your phone before beginning disassembly.

    • Insert a thumbnail, or a prying tool like a spudger, into the notch at the bottom left of the back cover.

    • Pry the back cover up to separate its plastic clips.

  2. QDLQjALsHEedUq1g
    QDLQjALsHEedUq1g
    DYRMfCNJAaCqXGIR
    • Lift the back cover to release the rest of the plastic clips and remove it.

    • In case you can't lift the back cover completely, slide your fingernail or your prying tool around the midframe to release the remaining clips.

    • To reinstall the back cover, press it firmly into place until you hear a snap from the plastic clips to form a seamless connection with the rear side of the phone.

  3. 2arfLhBLubLInUJL
    2arfLhBLubLInUJL
    vNIFxErUKETUJONX
    • Use a fingernail or a prying tool at the marked notch to lever the battery out of its recess.

  4. aMIxUdvWMNygpHMX
    aMIxUdvWMNygpHMX
    I21aUEIStAM1ZFIW
    • Lift the battery out of its recess and remove it.

  5. IVPlUGZGoe5Duhew
    • Remove the four Phillips #00 screws (4 mm length).

    Only the bottom 6 screws (below the battery contacts)need to be removed since your only removing the bottom panel.

    Alex Fefelov -

  6. vXFuP1ySVdFY4Amb
    vXFuP1ySVdFY4Amb
    n3jlyMCdPdVnRkvf
    • Insert a thumbnail, or a prying tool like a spudger, into the notch at the bottom left of the back cover you used earlier to remove the back cover.

    • Pry up the plastic panel, including the loudspeaker, until you can get a good grip.

  7. furk1eHvqBqWGqXs
    furk1eHvqBqWGqXs
    q1T4n3rxITpD41hA
    KsH1rImCtOkGcRef
    • Carefully remove the plastic panel including the loudspeaker by gently pulling it away from the phone assembly.

  8. 2ukspItuxi5xCjwQ
    • Remove the eight Phillips #00 screws (4 mm length).

  9. AoxCCFPAbcrL1SAT
    AoxCCFPAbcrL1SAT
    e1faF2MRDREuMqJ1
    jHxmFtsKwhllS3JP
    • Insert an opening pick between the bottom right corner of the motherboard cover and the motherboard.

    • Pry up the motherboard cover to open the plastic clips which hold the cover in its place.

    • The clips can be a bit resistive. If you're having trouble prying up the motherboard cover, slightly rotate the opening pick sideways to make the process easier.

    • Work your way along the right edge.

  10. LWWZi2Q4eerqlkMO
    LWWZi2Q4eerqlkMO
    3oeUDoXthIQKUtZ5
    FwCORvCByL5U53It
    • Carefully lift the right edge of the motherboard cover.

    • The remaining plastic clips should open during this process or can be unhinged easily by hand.

    • Remove the motherboard assembly.

  11. RX6I6Dtv22PBFPSZ
    RX6I6Dtv22PBFPSZ
    3OkG1fTdapI6Vy14
    • Use a spudger to pry up and disconnect the display flex cable.

  12. FJcmfnT4iwrTZxnd
    FJcmfnT4iwrTZxnd
    PMmWApuLtUmc2Y4t
    • Use a spudger to pry up and disconnect the digitizer flex cable.

  13. gqxW4yHhDlq6646Y
    gqxW4yHhDlq6646Y
    ICdDOnGB2UmjqRVO
    • Use a spudger to pry up and disconnect the rear camera flex cable.

  14. PAoyYLAYyUOIFKUF
    PAoyYLAYyUOIFKUF
    FGeFjbFUUplXUXYi
    • Use a spudger to pry up and disconnect the front camera flex cable.

  15. QtWos6tdtWa2SdnW
    QtWos6tdtWa2SdnW
    jTbNCnv5PBWSnDyN
    • During these next few steps, make sure to avoid damaging the flex cables you disconnected.

    • Slide an opening pick under the bottom right corner of the motherboard and slowly pry it out of its recess by rotating the opening pick sideways.

  16. 6hYbu35om25VDFVI
    6hYbu35om25VDFVI
    NkVwGm5f1dUhE5oW
    • Slide the opening pick under the right edge of the motherboard where the SIM card slot is located and pry it up by rotating the opening pick sideways.

  17. gaGfTQIaM3hwFXOr
    gaGfTQIaM3hwFXOr
    jUMSTPxEuER1RF2O
    • Grab the top section of the motherboard and carefully lift it out of the phone.

  18. SXipHMRUfWR6symo
    SXipHMRUfWR6symo
    PCulqkHy5pDkOxZa
    igYXrXbL6oJEb1ht

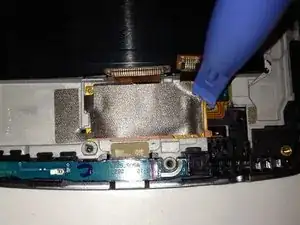

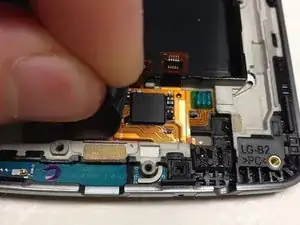

    • Remove the metal tape to reveal the ribbon cables connected to the screen

    • The metal tape is stuck on there pretty well. Get the plastic opening tool under the right-hand side and corners and slowly work your way to getting it off

    • Be careful when removing the metal tape. We can reuse it after we replace the screen

  19. YMPkgTlFMCOvBw6P
    YMPkgTlFMCOvBw6P
    iteLFENAYhIZPufA

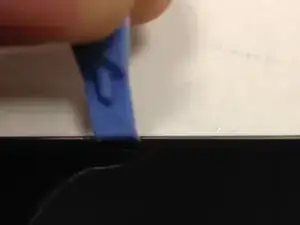

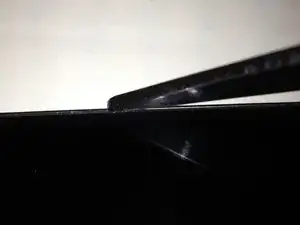

    • If you wish to preserve the LCD screen for whatever reason, it is recommended you use a heat gun around the sides in order to weaken the adhesive that keeps the screen in place

    • Take something thin, such as a knife, and wedge it between the screen and the body of the phone

    • One you have created some space, wedge your plastic opening tool into the space and remove the knife

    • Move your plastic opening tool up and down the side of the phone while lightly pulling up. Repeat this for all sides until the screen comes out

    • If you wish to preserve the LCD screen, be careful how deep you wedge the plastic opening tool in and how hard you pull up to get the screen out. Depending on the depth of the plastic opening tool and strength used, there is a high risk of damaging the LCD screen

    • Remove the old adhesive from the body and replace with new adhesive so the new screen will stay in place

  20. RrRVGHkjKIrsRKGC

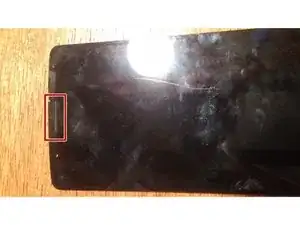

    • Before reassembly, be sure to transfer the front speaker grille if it is not included with the new screen. If not, carefully push the grille out from the old screen, then reinsert it on the new LCD.

Abschluss

To reassemble your device, follow these instructions in reverse order.
